Elite 57 Range

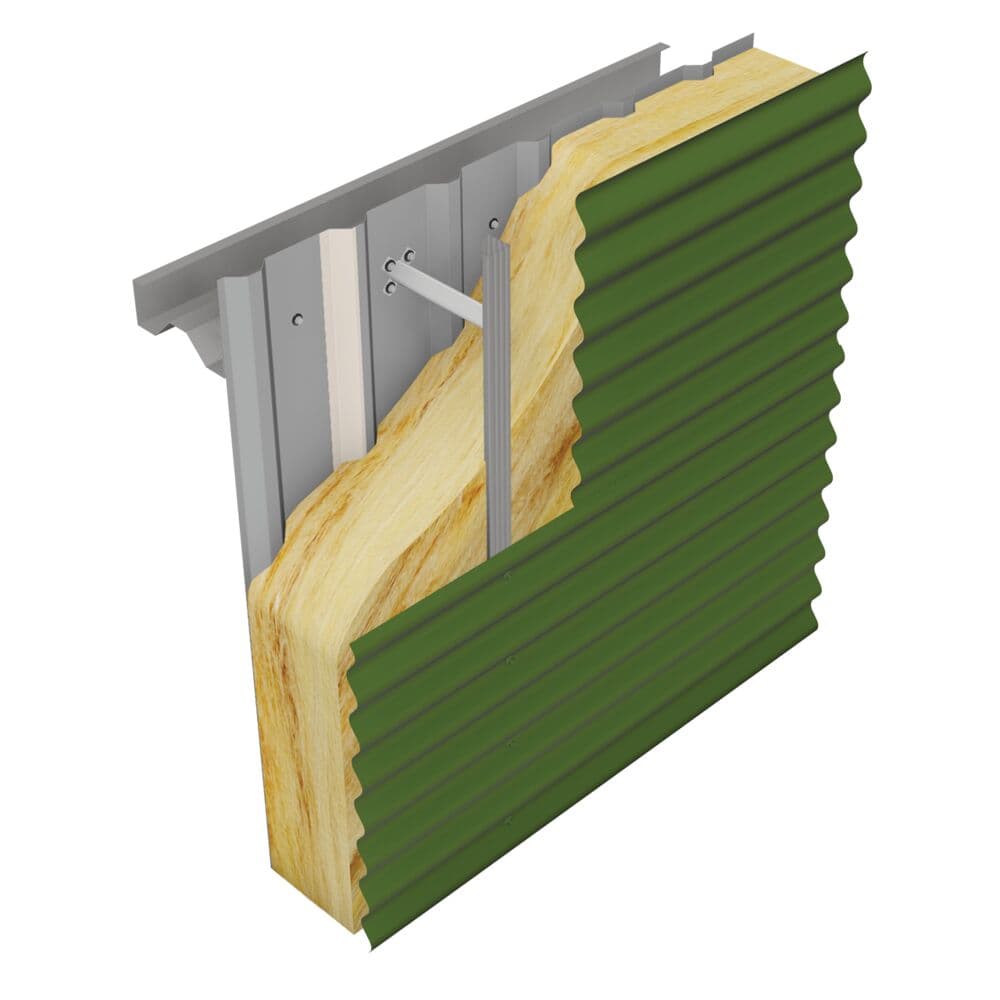

The Elite 57 Range is an aesthetically pleasing horizontal cladding solution, comprising of our sinusoidal external steel profile fixed to our Quattro Spacer System with quilt insulation.

An eyecatching corrugated design for modern constructions
External steel sheet available in a range of coatings and colours
Full system supply with all standard components

Order a profile sample Expert Help Starts Here

Technical Information

The Elite 57 Range offers innovative system options tailored for performance, safety, and versatility across a variety of building applications. All Elite Wall Systems utilise the same vertical 19-167-1000 liner profile as standard.

System Weights

For calculated maximum possible system weights for each available system variation in the Elite 57 Range, please see the relevant Thermal Result Sheets Technical Guidance document in the Downloads section.

Thermal Performance

The Elite 57 Range of Systems are available in a range of thicknesses to allow tailoring to your thermal requirements. For a detailed breakdown, together with thermal results sheets for each available configuration, please see the relevant Thermal Results Sheet Technical Guidance document for this system, available in the Downloads section.

Acoustic Performance

For information on acoustic performance, contact the Technical Team.

Fire Performance

All systems in our Elite 57 Range are specified with A1-rated insulation to BS EN 13501-1: 2018 or equivalent.

Contact the Technical Team for information on the fire resistance performance of our Elite Wall Systems.

System Options

Please contact the Technical Team regarding available system options within the Elite 57 Range.

Coatings

A variety of coating types and finishes are available as the external finish of our Elite 57 Range systems, including solutions rated A1, A2-s1,d0 and C-s2,d0 when tested to BS EN 13501-1:2018.

Contact our Technical Team for further information regarding these options.
