Technical Information

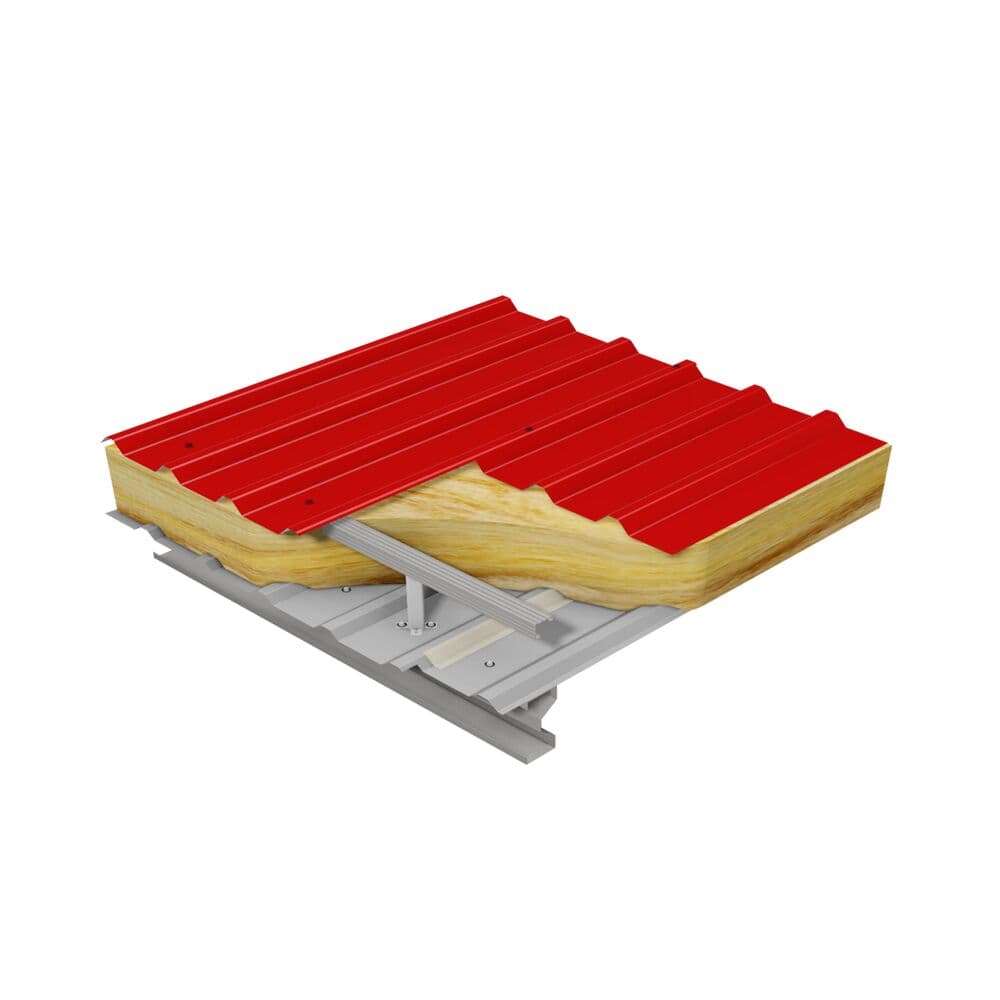

Elite 1 offers robust technical performance, including strong thermal insulation, acoustic and fire performance, a range of coatings, and certification options. Elite 1 utilises a cost-effective 19-167-1000 liner profile. Detailed technical data and calculation notes are provided below.
Thermal Performance
U Value calculations have been carried out in accordance with BR433:October 2019. See table below:
| Quattro Bracket Height (mm) | U Value (W/m²K) |
|---|---|
| 80 | 0.57 |
| 100 | 0.45 |
| 120 | 0.37 |
| 140 | 0.32 |
| 150 | 0.30 |
| 160 | 0.28 |
| 170 | 0.26 |
| 180 | 0.25 |
| 185 | 0.24 |
| 200 | 0.23 |
| 220 | 0.20 |
| 240 | 0.19 |
| 260 | 0.17 |
| 280 | 0.16 |
| 300 | 0.15 |
| 320 | 0.14 |
| 340 | 0.13 |
| 360 | 0.12 |
| 380 | 0.12 |
| 400 | 0.11 |
*Assumptions used in calculation:
Quattro Brackets at 1.167m centres, Quattro Bars at 1.500m centres.
0.040λ (Lambda) 90/90 quilt insulation filling the void between liner sheet and underside of external profile.
U Values can be calculated for Elite 1 specifications with alternative Quattro Bracket heights not listed above. Contact the Technical Team for more information.
Acoustic Performance
For information on acoustic performance, contact the Technical Team.
Fire Performance
A variety of coating types and finishes are available as the external finish of our Elite 1 system, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.
Contact our Technical Team for further information regarding these options.
Coatings
A variety of coating types and finishes are available as the external finish of our Elite 1 system, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.
Contact our Technical Team for further information regarding these options.
Certification
For information on certification held by Euroclad Group for this system, contact the Technical Team.
