Technical Information
Elite 4 Range offers advanced technical characteristics including high thermal performance, acoustic options, fire-rated coatings, and certified system variants. Detailed specifications are provided below.
Thermal Performance
| Elite 4 | Elite 4 AC2 | ||
|---|---|---|---|
| Quattro Bracket Height (mm) | U Value (W/m²K) | Quattro Bracket Height (mm) | U Value (W/m²K) |
| 100 | 0.34 | 100 | 0.34 |
| 120 | 0.29 | 120 | 0.29 |
| 140 | 0.26 | 140 | 0.26 |
| 150 | 0.24 | 150 | 0.24 |
| 160 | 0.23 | 160 | 0.23 |
| 170 | 0.22 | 170 | 0.22 |
| 180 | 0.21 | 180 | 0.21 |
| 185 | 0.20 | 185 | 0.20 |
| 200 | 0.19 | 200 | 0.19 |
| 220 | 0.18 | 220 | 0.18 |
| 240 | 0.16 | 240 | 0.16 |
| 260 | 0.15 | 260 | 0.15 |
| 280 | 0.14 | 280 | 0.14 |
| 300 | 0.13 | 300 | 0.13 |
| 320 | 0.13 | 320 | 0.13 |
| 340 | 0.12 | 340 | 0.12 |
| 360 | 0.11 | 360 | 0.11 |
| 380 | 0.11 | 380 | 0.11 |
| 400 | 0.10 | 400 | 0.10 |
*Assumptions used in calculation:
Quattro Brackets at 1.200m centres, Quattro Bars at 1.500m centres.
0.040λ (Lambda) 90/90 insulation quilt filling the void between liner sheet and underside of external profile.
U Values can be calculated for Elite 4 and Elite 4 AC2 specifications with alternative Quattro Bracket heights not listed above. Contact the Technical Team for more information.
Acoustic Performance
For information on acoustic performance, contact the Technical Team.
Fire Performance
A variety of coating types and finishes are available as the external finish of our Elite 4 Range of systems, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.
Contact our Technical Team for further information regarding these options.
System Options

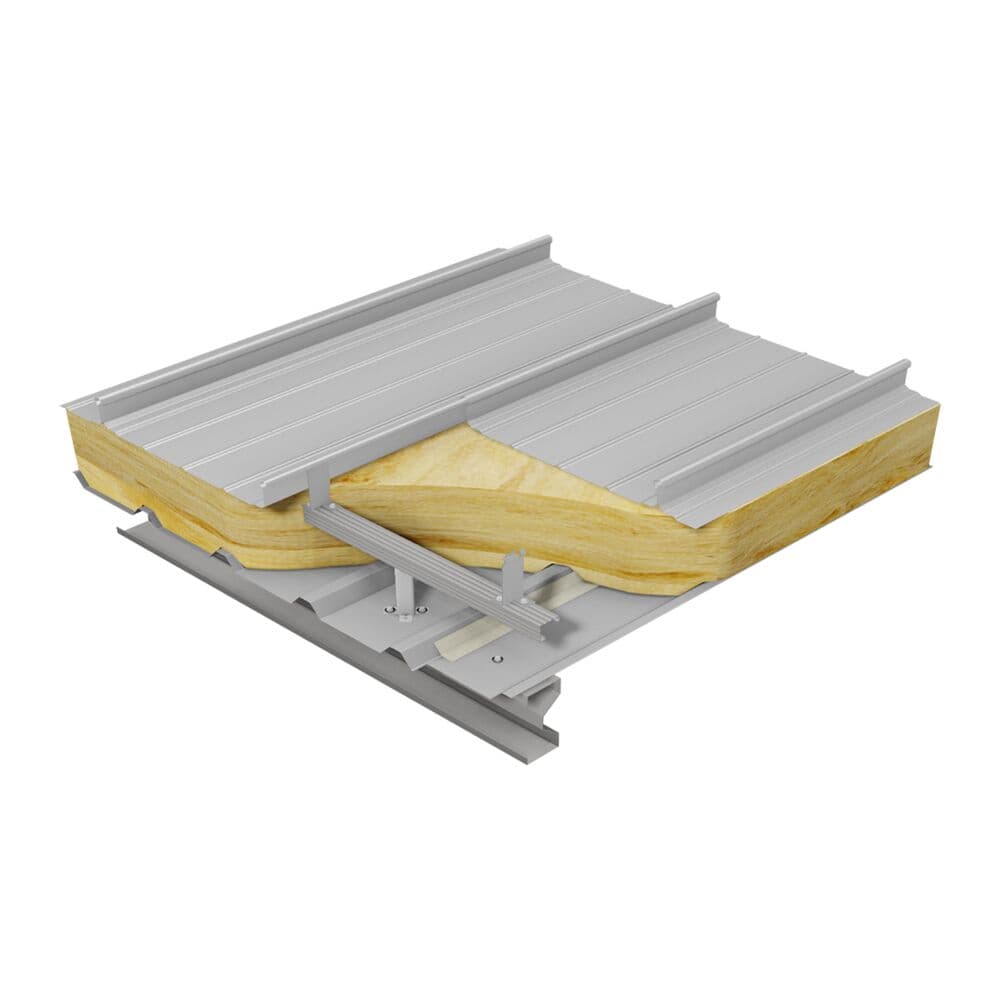

There are two system options within the Elite 4 Range: Elite 4 and Elite 4 AC2. The main difference between these systems occurs at the liner level of the construction.
Elite 4 is specified with a non-perforated EC 32-200-1000 Liner MW5 internal steel profile, whereas Elite 4 AC2 uses a perforated version of this liner profile. This, together with additional acoustic insulation batts, gives the AC2 variant improved sound absorption performance when compared to the standard Elite 4 system.
Coatings
A variety of coating types and finishes are available as the external finish of our Elite 4 Range of systems, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.
Contact our Technical Team for further information regarding these options.
Certification
For information on certification held by Euroclad Group for this system, contact the Technical Team.
