Technical Information

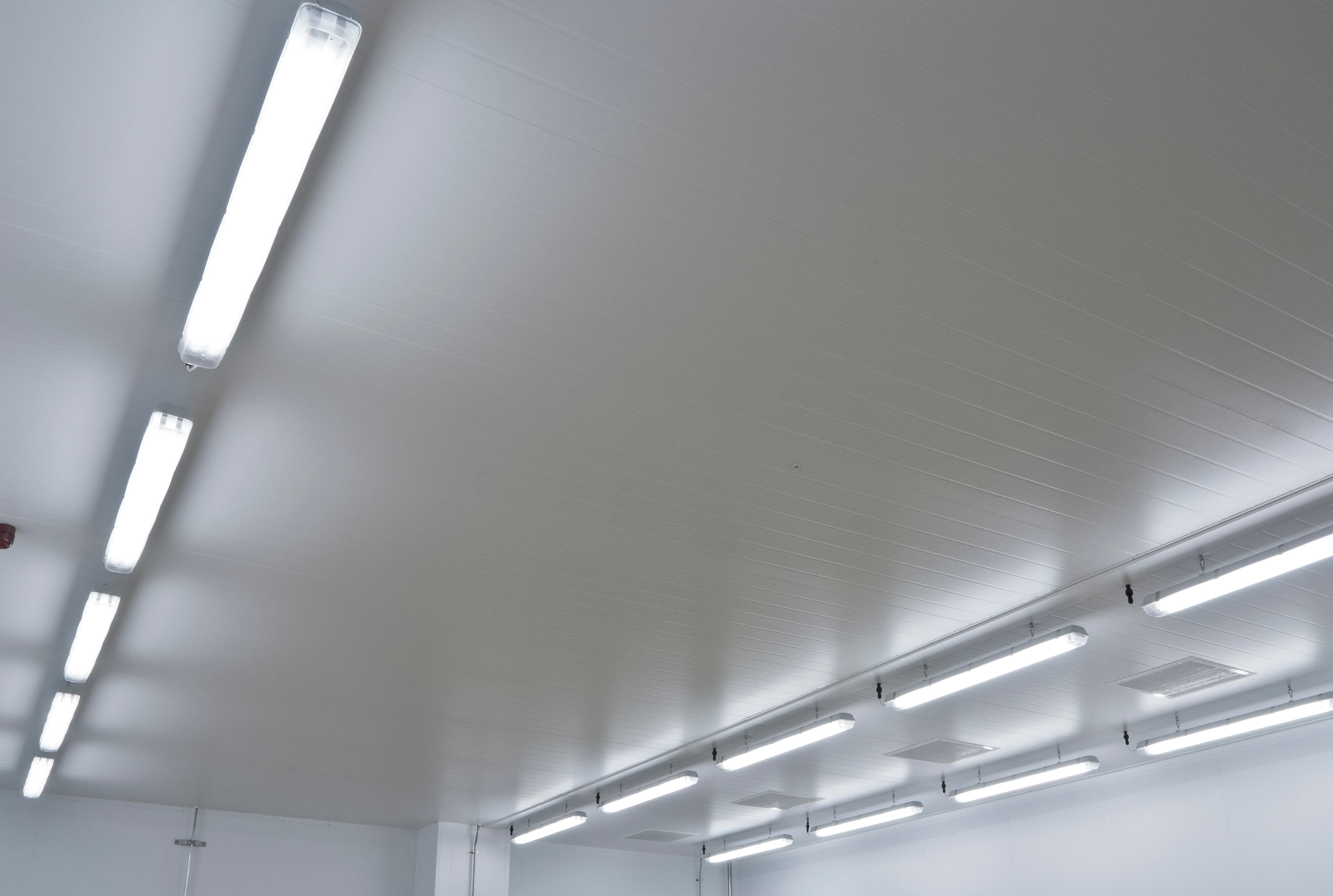

Firemaster ceiling panels provide fire, thermal, and acoustic performance to help meet project requirements, and are available in various coatings for clean-room and other applications.
Certification and Test Reports
Euroclad Group systems are tested and certified to achieve compliance with regulatory requirements. The classification report for the Eurobond panel A2-s1,d0 Euroclass rating to EN13501-1:2018 can be found here. For any other fire performance or test data, please contact our Technical Team. |
Product Tolerances
Product Tolerances to BS EN 14509:2013
| Firemaster Ceiling | |
|---|---|
| Panel Length (≤ 3 metres) | ± 5mm |
| Panel Length (> 3 metres) | ± 10mm |
| Panel Width | ± 2mm |
| Panel Thickness | ± 2mm |
| Facing Squareness | ± 2mm |
| Corners (Leg Length) | ± 2.5mm |
| Corners (Angle) | ± 1.0° |
| Flatness | ± 1.5mm from theoretical flat plane over a distance of 700mm |
| Joint Gap | ± 2mm |
Thermal Performance
U value @ 10°C (BS EN 14509:2013) / Thermal Performance - W/m²K
| Core Thickness (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Firemaster Ceiling | 0.53 | 0.40 | 0.33 | 0.28 | 0.24 | 0.21 | 0.18 | 0.14 |
Weights
Panel Weight per Square Metre (kg)
| Core Thickness (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Weight (0.5mm/0.7mm)* kg/m² | 17.54 | 20.42 | 23.29 | 26.17 | 29.04 | 31.92 | 36.52 | 43.42 |
* Internal/External steel face gauge thickness
Acoustic Performance
For information on acoustic performance contact the Technical Team.
Fire Performance
Firemaster Ceiling offers a Euroclass A2-s1, d0 Reaction to Fire when tested and classified to BS EN 13501-1:2018.
Firemaster Ceiling can also offer fire resistance performances from 60 minutes up to 3 hours Insulation and Integrity (to BS EN 1364-2:2018) depending on thickness. Please note that all current test evidence for the product is relevant when the fire attack is from below. Specific performances should be verified by our Technical Team on a project-by-project basis, to the correct standards.
Panel Options

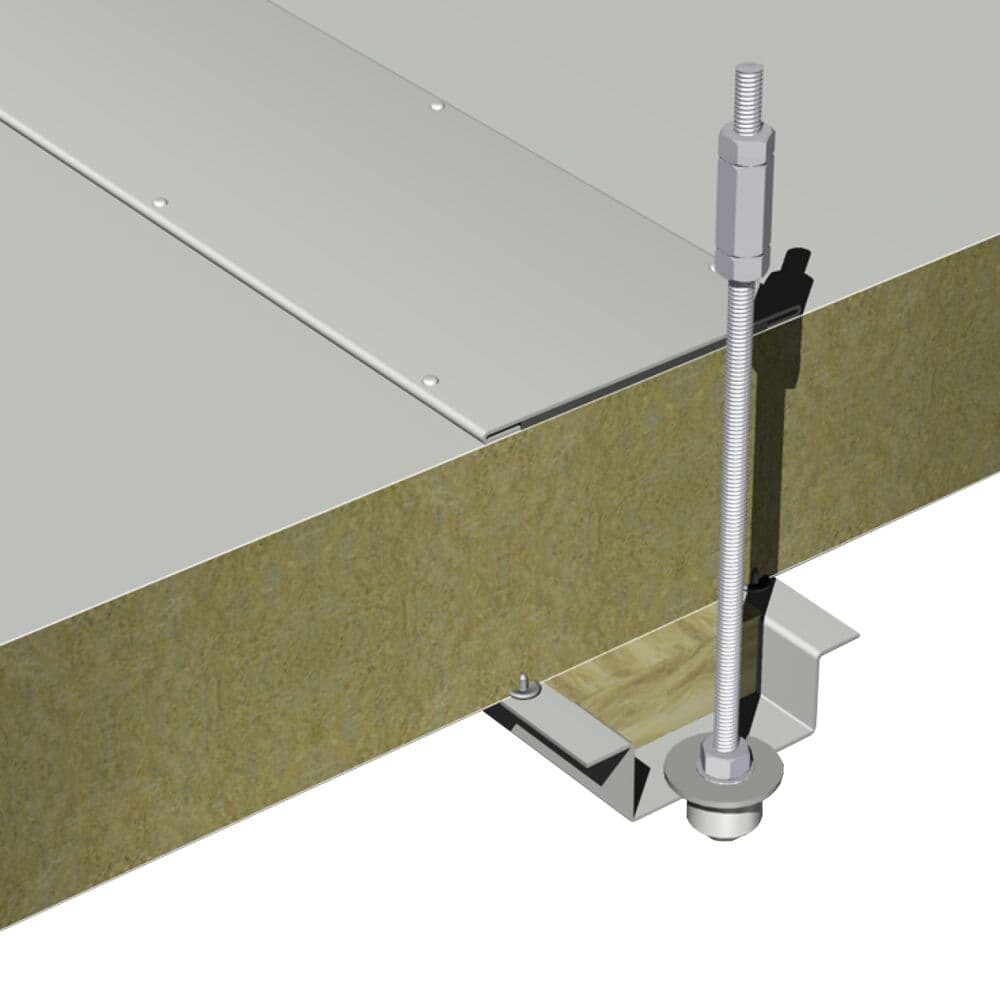

Firemaster Ceiling is a ceiling panel, suitable for walk-on (access and maintenance) use. This panel offers a reaction to fire performance of Euroclass A2-s1, d0 when tested and classified to BS EN 13501-1:2018.
Coatings
Firemaster Ceiling is available in a number of coating options. Tata Steel Colorcoat® PE 25, Tata Steel Advantica® L Control (FSL), and ArcelorMittal® Estetic Standard are available, with the choice dependent upon the end use and environment of the building. Please speak to our Technical Team for further information regarding these options.
