Rainspan

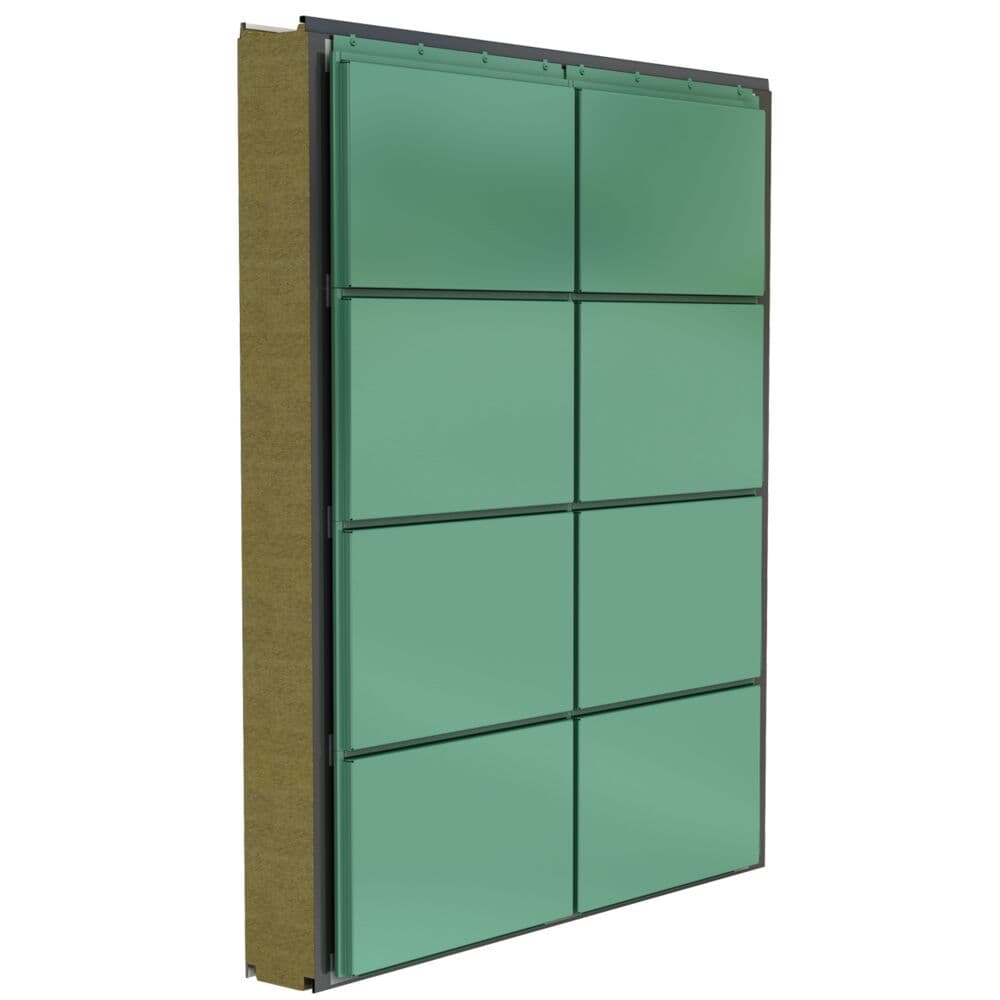

Rainspan is an external wall sandwich panel designed to support mechanically fixed rainscreens on its exposed face. It combines the speed benefits of a sandwich panel installation whilst maintaining the ability to specify various rainscreen options.

Creates a weathertight building envelope early in the build process
Compatible with any verified rainscreen system
Suitable for horizontal or vertical installation

Expert Help Starts Here

Technical Information

Detailed technical characteristics and performance data for Rainspan wall panels, including tolerances, thermal and acoustic performance, fire ratings, panel options, and available coatings.

Certification and Test Reports

Euroclad Group systems are tested and certified to achieve compliance with regulatory requirements. The classification report for the Eurobond panel A2-s1,d0 Euroclass rating to EN13501-1:2018 can be found here. For any other fire performance or test data, please contact our Technical Team.

Product Tolerances

Product Tolerances to EN14509:2013

Product Tolerances
Product Tolerances
Panel Length (≤ 3 metres)	± 5mm
Panel Length (> 3 metres)	± 10mm
Panel Width	± 2mm
Panel Thickness	± 2mm
Facing Squareness	± 2mm
Corners (Leg Length)	± 2.5mm
Corners (Angle)	± 1.0°
Flatness	± 1.5mm from theoretical flat plane over a distance of 700mm
Joint Gap	± 2mm

Thermal Performance

U value @ 10°C (BS EN 14509:2013) / Thermal Performance - W/m²K

Thermal Performance
Core Thickness (mm)	75	100	125	150	175	200	240	300
Rainspan	0.53	0.41	0.33	0.28	0.24	0.21	0.18	0.14

Weights

Panel Weight per Square Metre (kg)

Weights
Core Thickness (mm)	75	100	125	150	175	200	240	300
Weight (0.7mm/0.7mm)* kg/m²	18.77	21.64	24.52	27.39	30.27	33.14	37.74	44.64

* Internal/External steel face gauge thickness

Acoustic Performance

For information on acoustic performance contact the Technical Team.

Fire Performance

Rainspan panels offer a Euroclass A2-s1, d0 Reaction to Fire when tested and classified to BS EN 13501-1:2018.

Rainspan can also offer fire resistance performances from 60 minutes up to 4 hours Insulation and Integrity (to BS EN 1364-1:2015) depending on thicknesses and orientation. Specific performance information should be verified by our Technical Team on a project-by-project basis, to the correct standards.

Panel Options

Rainspan sandwich wall panels are an easy to install external solution, offering reaction to fire performance of Euroclass A2-s1, d0 when tested and classified to BS EN 13501-1:2018.

The BS EN 13501-2:2016 fire resistance performance of Rainspan panels is dependent on panel thickness, orientation and method of assembly.

Rainspan panels are supplied with a 0.7mm internal liner, and allow for rainscreens to be mechanically fixed to or through the 0.7mm external face.

Please contact our Technical Team for specific performances and further information.

Coatings

Rainspan is an external wall panel available with Colorcoat Prisma® in a variety of colours as the standard external coating option. Tata Steel Colorcoat Prisma®, Tata Steel Colorcoat PE25®, Tata Steel Advantica® L Control (FSL), and ArcelorMittal Estetic® Standard are all available as internal coating options, with the choice dependent upon the end use and environment of the building. Please contact our Technical Team for further information.

Please note: Tata Steel's Colorcoat Prisma® Elements coatings are not available.
