Technical Information

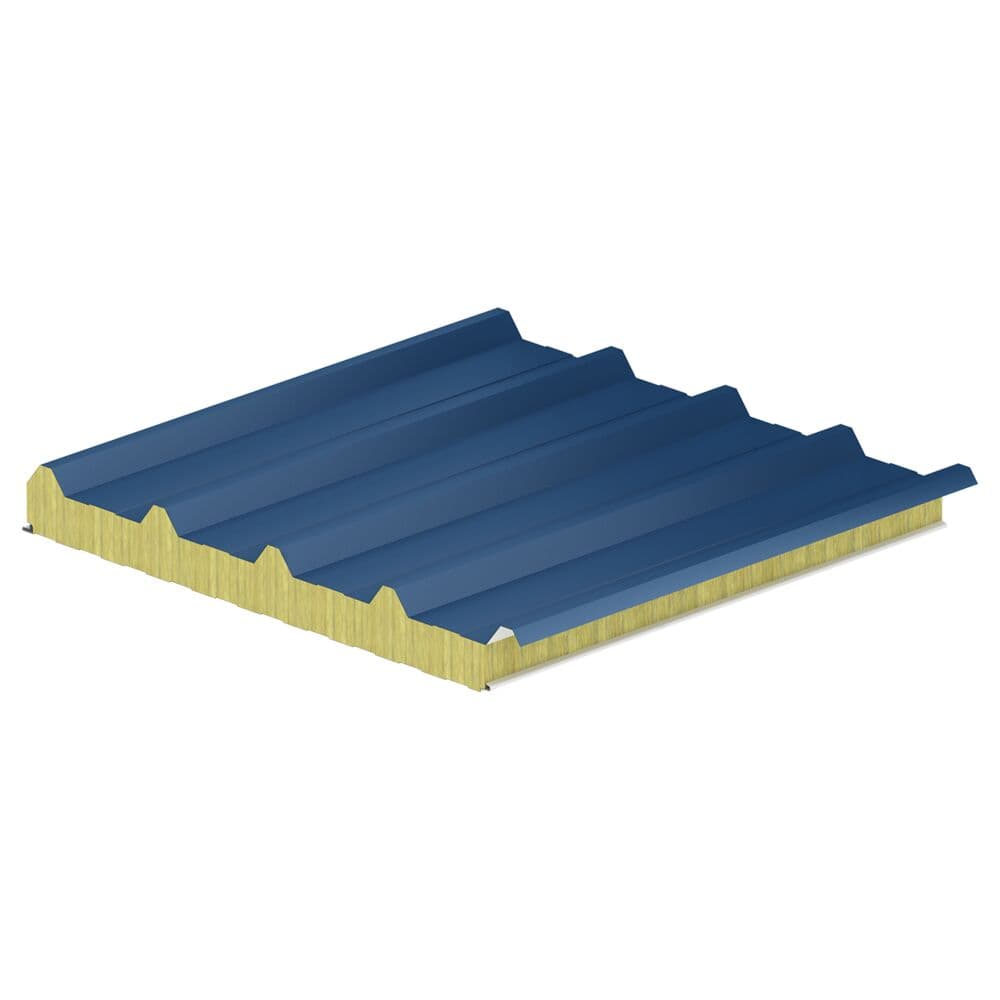

Technical characteristics, performance data, and specification details for Roofspan insulated roof panels.
Product Tolerances
Product Tolerances to EN14509:2013
| Panel Length (≤ 3 metres) | ± 5mm |
| Panel Length (> 3 metres) | ± 10mm |
| Panel Width | ± 2mm |
| Panel Thickness | ± 2mm |
| Facing Squareness | ± 2mm |
| Flatness | ± 1.5mm from theoretical flat plane over a distance of 700mm |
| Joint Gap | ± 2mm |
Thermal Performance
U value @ 10°C (BS EN 14509:2013) / Thermal Performance - W/m²K
| Core Thickness (mm) | 50 | 80 | 100 | 120 | 150 | 175 | 200 |
|---|---|---|---|---|---|---|---|
| Roofspan | 0.77 | 0.51 | 0.41 | 0.35 | 0.28 | 0.24 | 0.21 |
Weights
Panel Weight per Square Metre (kg)
| Core Thickness (mm) | 50 | 80 | 100 | 120 | 150 | 175 | 200 |
|---|---|---|---|---|---|---|---|
| Weight (0.5mm/0.6mm)* kg/m² | 15.7 | 18.6 | 20.6 | 22.6 | 25.6 | 28.1 | 30.7 |
* Internal/External steel face gauge thickness
Acoustic Performance
For information on acoustic performance contact the Technical Team.
Fire Performance
Roofspan can offer a Euroclass A2-s1, d0 Reaction to Fire when tested and classified to BS EN 13501-1:2013 subject to the external steel coating specified. Please contact our Technical Team for information.
Roofspan is classifed as BROOF(t4) to BS EN 13501-5:2016 for roof pitches equal to or below 10° subject to the external steel coating specified. Please contact our Technical Team for information.
Roofspan can also offer fire resistance performances from 60 minutes up to 2 hours Insulation and Integrity (to BS EN 1365-2:2014) depending on thicknesses. Specific performances should be verified by our Technical Team on a project-by-project basis, to the correct standards.
Panel Options
Roofspan can offer a Euroclass A2-s1, d0 Reaction to Fire when tested and classified to BS EN 13501-1:2018 subject to the external steel coating specified. Please contact our Technical Team for information.
Roofspan is classifed as BROOF(t4) to BS EN 13501-5:2016 for roof pitches equal to or below 10° subject to the external steel coating specified. Please contact our Technical Team for information.
Roofspan can also offer fire resistance performances from 60 minutes up to 2 hours Insulation and Integrity (to BS EN 1365-2:2014) depending on thicknesses. Specific performances should be verified by our Technical Team on a project-by-project basis, to the correct standards.
Coatings
For information on available coating options for Roofspan, please contact our Technical Team.
Downloads
We bring together products that are shaping the future of the built environment, from energy-efficient envelopes to intelligent building systems.

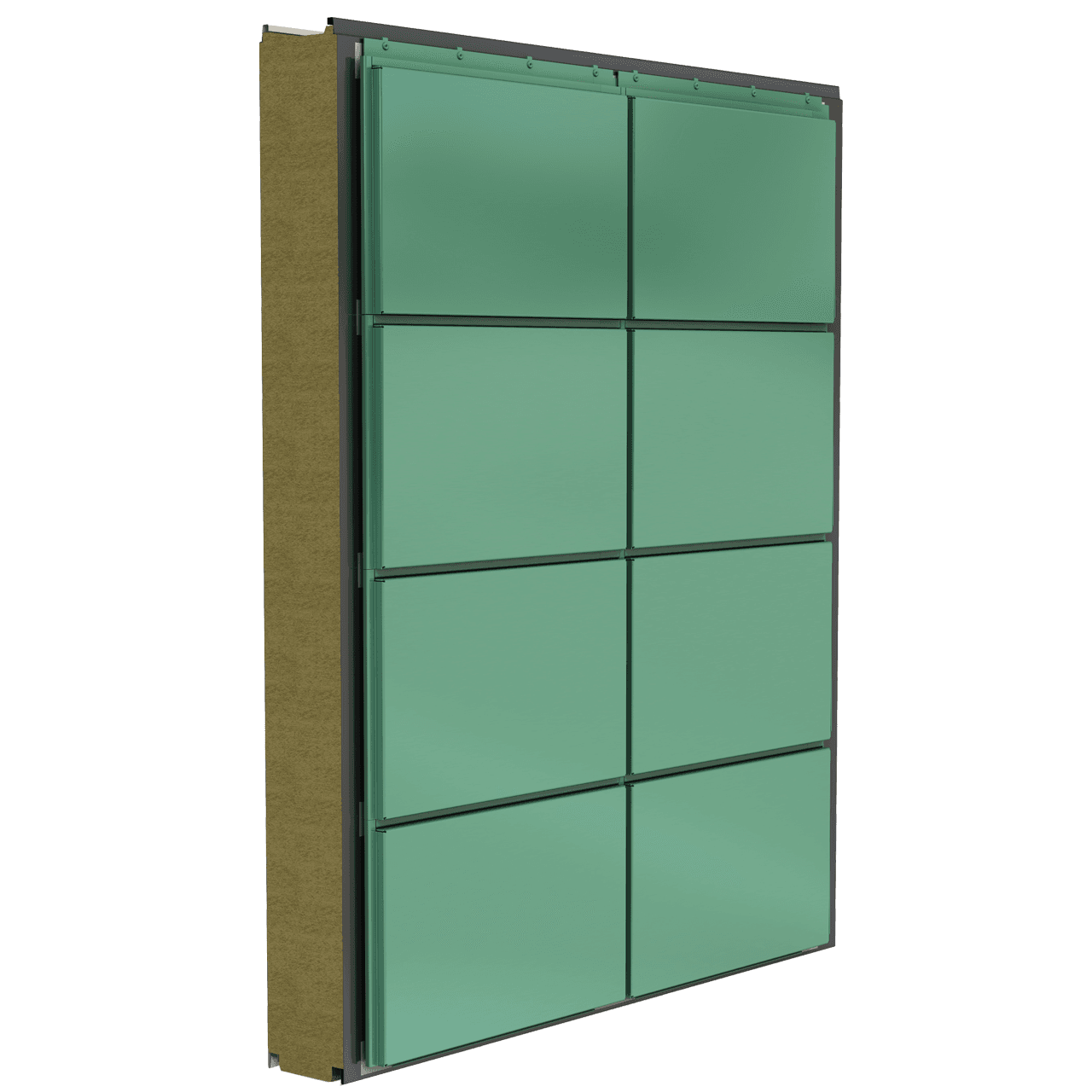

Rainspan
