Technical Information
The Europanel Range features advanced technical characteristics, including precise product tolerances, high thermal performance, a variety of panel weights, acoustic and fire performance, multiple panel options, and a selection of durable coatings.
Certification and Test Reports
Euroclad Group systems are tested and certified to achieve compliance with regulatory requirements. The classification report for the Eurobond panel A2-s1,d0 Euroclass rating to EN13501-1:2018 can be found here. For any other fire performance or test data, please contact our Technical Team. |
Product Tolerances
Product Tolerances to BS EN 14509:2013
| Europanel F5 Extra | Europanel S5 Extra | |
|---|---|---|
| Panel Length (≤ 3 metres) | ± 5mm | ± 5mm |
| Panel Length (> 3 metres) | ± 10mm | ± 10mm |
| Panel Width | ± 2mm | ± 2mm |
| Panel Thickness | ± 2mm | ± 2mm |
| Facing Squareness | ± 2mm | ± 2mm |
| Corners (Leg Length) | ± 2.5mm | ± 2.5mm |
| Corners (Angle) | ± 1.0° | ± 1.0° |
| Flatness | ± 1.5mm from theoretical flat plane over a distance of 700mm | ± 1.5mm from theoretical flat plane over a distance of 700mm |
| Joint Gap | ± 2mm | ± 2mm |
Thermal Performance
U value @ 10°C (BS EN 14509:2013) / Thermal Performance - W/m²K
| Core Thickness (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Europanel F5 Extra | 0.53 | 0.41 | 0.33 | 0.28 | 0.24 | 0.21 | 0.18 | 0.14 |
| Europanel S5 Extra | 0.53 | 0.41 | 0.33 | 0.28 | 0.24 | 0.21 | 0.18 | 0.14 |
Weights
Panel Weight per Square Metre (kg)
| Core Thickness (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Europanel F5 Extra: | ||||||||
| Weight (0.5mm/0.5mm)* kg/m² | 16.42 | 19.30 | 22.17 | 25.05 | 27.92 | 30.80 | 35.40 | 42.30 |
| Weight (0.5mm/0.7mm)* kg/m² | 17.59 | 20.47 | 23.34 | 26.22 | 29.09 | 31.97 | 36.57 | 43.47 |
| Weight (0.7mm/0.5mm)* kg/m² | 17.59 | 20.47 | 23.34 | 26.22 | 29.09 | 31.97 | 36.57 | 43.47 |
| Weight (0.7mm/0.7mm)* kg/m² | 18.77 | 21.64 | 24.52 | 27.39 | 30.27 | 33.14 | 37.74 | 44.64 |
| Europanel S5 Extra: | ||||||||
| Weight (0.5mm/0.5mm)* kg/m² | 16.42 | 19.30 | 22.17 | 25.05 | 27.92 | 30.80 | 35.40 | 42.30 |
| Weight (0.5mm/0.7mm)* kg/m² | 17.59 | 20.47 | 23.34 | 26.22 | 29.09 | 31.97 | 36.57 | 43.47 |
| Weight (0.7mm/0.5mm)* kg/m² | 17.59 | 20.47 | 23.34 | 26.22 | 29.09 | 31.97 | 36.57 | 43.47 |
| Weight (0.7mm/0.7mm)* kg/m² | 18.77 | 21.64 | 24.52 | 27.39 | 30.27 | 33.14 | 37.74 | 44.64 |
* Internal/External steel face gauge/thickness
Acoustic Performance
For information on acoustic performance contact the Technical Team.
Fire Performance
Europanel F5 Extra and Europanel S5 Extra both offer Euroclass A2-s1, d0 classification for Reaction to Fire when tested in accordance with BS EN 13501-1:2018.
Europanel F5 Extra and Europanel S5 Extra can also offer a fire resistance performance of either 2 hours or 3 hours Insulation and Integrity (to BS EN 1364-1:2015) depending on thicknesses and orientation. Specific performances should be verified by our Technical Team on a project-by-project basis, to the correct standards.
Panel Options

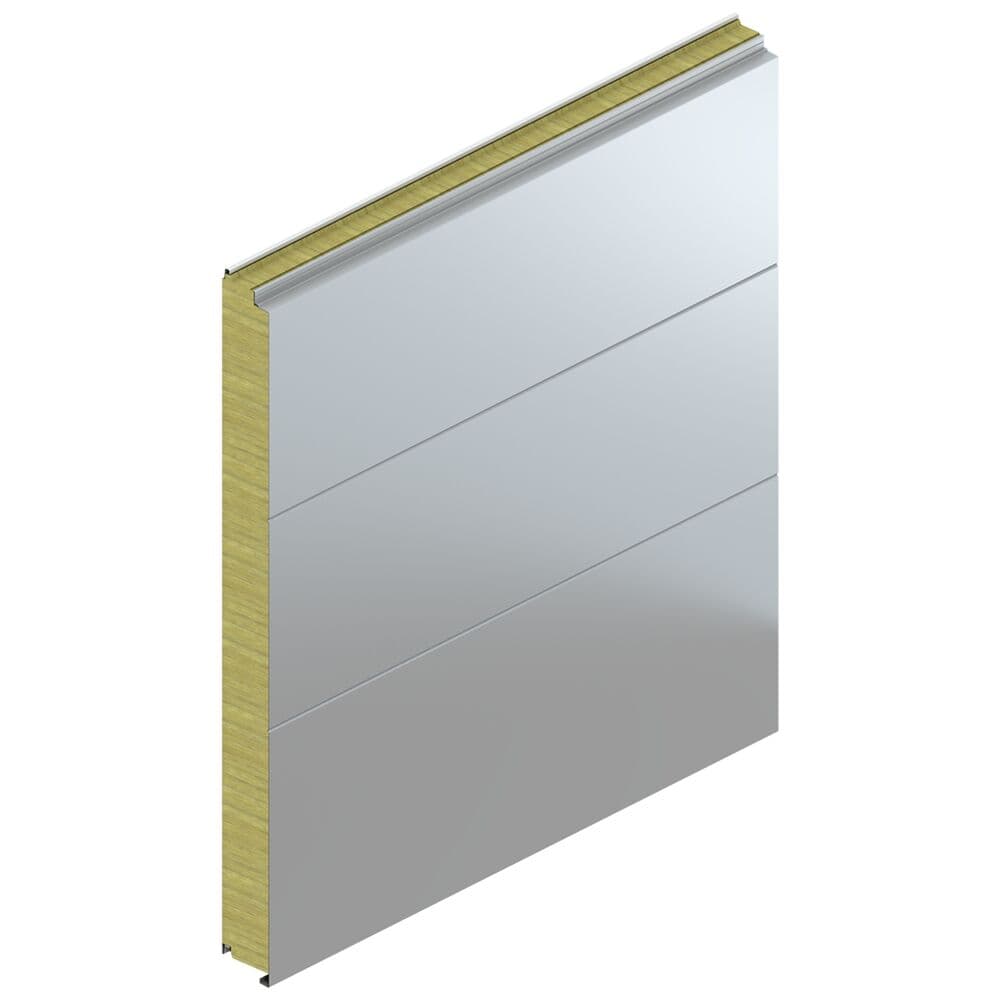

Europanel F5 Extra is supplied with an architecturally flat profile. Europanel S5 Extra features a satin line (microrib) external steel face profile. Both are suited to either horizontal or vertical installation. Fasteners are concealed within the secret-fix horizontal joint in both options.
The panel is also available with a V-Groove profile option, roll formed into the external steel face of the panel at the point of manufacture. This is available across the Europanel Range. The V-Groove profile simulates an interlocking panel joint to create a distinctive grid design.
Coatings
The Europanel Range of external wall panels is available with Colorcoat Prisma® in a variety of colours as the standard external coating option. Tata Steel Colorcoat Prisma®, Tata Steel Colorcoat PE25®, Tata Steel Advantica® L Control (FSL), and ArcelorMittal Estetic® Standard are all available as internal coating options, with the choice dependent upon the end use and environment of the building. Please contact our Technical Team for further information.
Please note: Tata Steel's Colorcoat Prisma® Elements coatings are not available.
Downloads
We bring together products that are shaping the future of the built environment, from energy-efficient envelopes to intelligent building systems.
Rainspan
External wall sandwich panels designed to support rainscreens

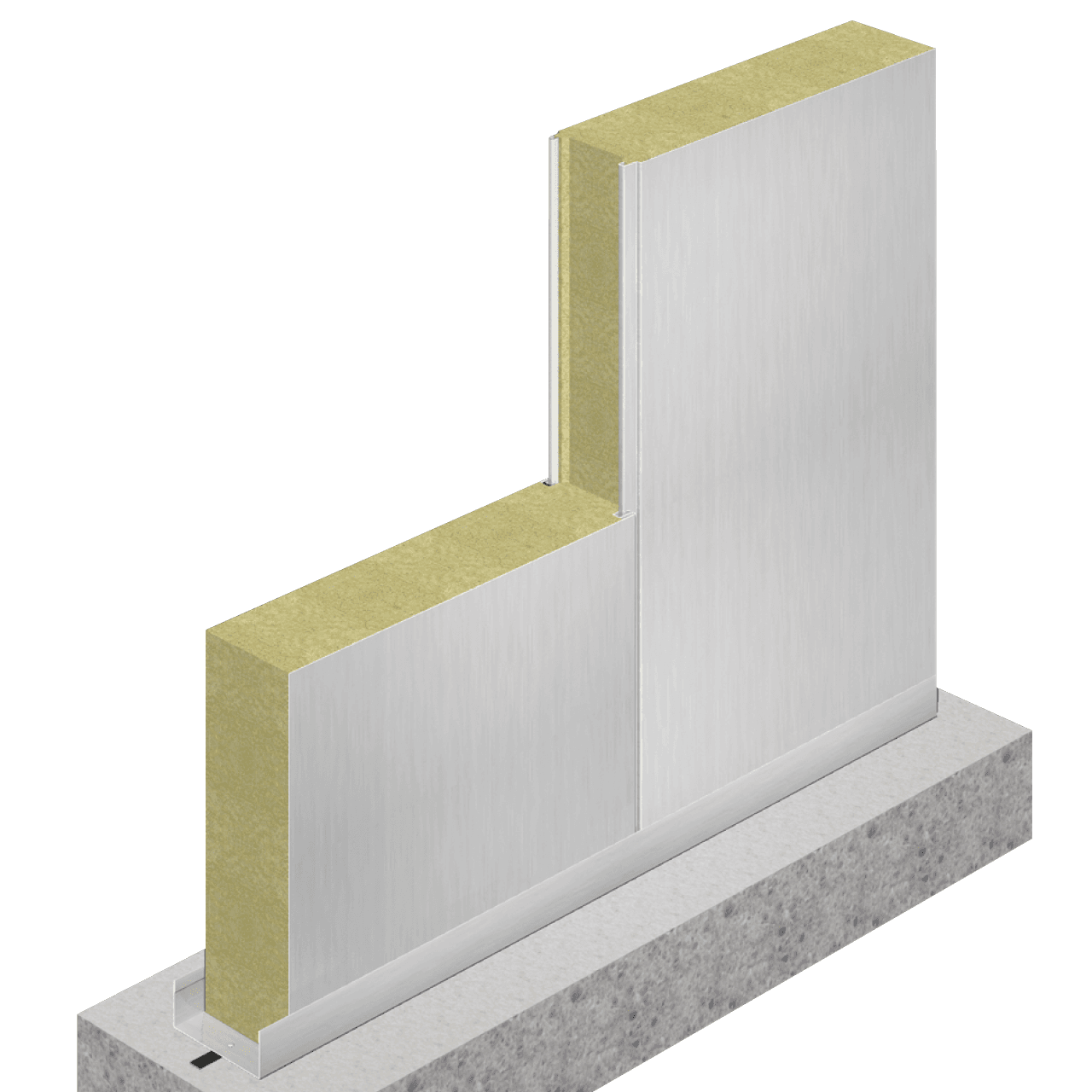

Firemaster Wall
