Technical Information
Rockspan® Roof technical information covers product tolerances, thermal and acoustic performance, weights, fire performance, panel options, and available coatings.
Certification and Test Reports
Euroclad Group systems are tested and certified to achieve compliance with regulatory requirements. The classification report for the Eurobond panel A2-s1,d0 Euroclass rating to EN13501-1:2018 can be found here. For any other fire performance or test data, please contact our Technical Team. |
Product Tolerances
Product Tolerances to EN14509:2013
| Panel Length (≤ 3 metres) | ± 5mm |
| Panel Length (> 3 metres) | ± 10mm |
| Panel Width | ± 2mm |
| Panel Thickness | ± 2mm |
| Facing Squareness | ± 2mm |
| Corners (Leg Length) | ± 2.5mm |
| Corners (Angle) | ± 1.0° |
| Flatness | ± 1.5mm from theoretical flat plane over a distance of 700mm |
| Joint Gap | ± 2mm |
Thermal Performance
U value @ 10°C (BS EN 14509:2013) / Thermal Performance - W/m²K
| Core Thickness (mm) | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|
| Rockspan Roof | 0.28 | 0.24 | 0.21 | 0.18 | 0.14 |
Weights
Panel Weight per Square Metre (kg)
| Core Thickness (mm) | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|
| Rockspan Roof: | |||||
| Weight (0.7mm/0.7mm)* kg/m² | 27.39 | 30.27 | 33.14 | 37.74 | 44.64 |
* Internal/External steel face gauge thickness
Acoustic Performance
For information on acoustic performance contact the Technical Team.
Fire Performance
Rockspan Roof offers a Euroclass A2-s1, d0 Reaction to Fire when tested and classified to BS EN 13501-1:2018.
Panel Options

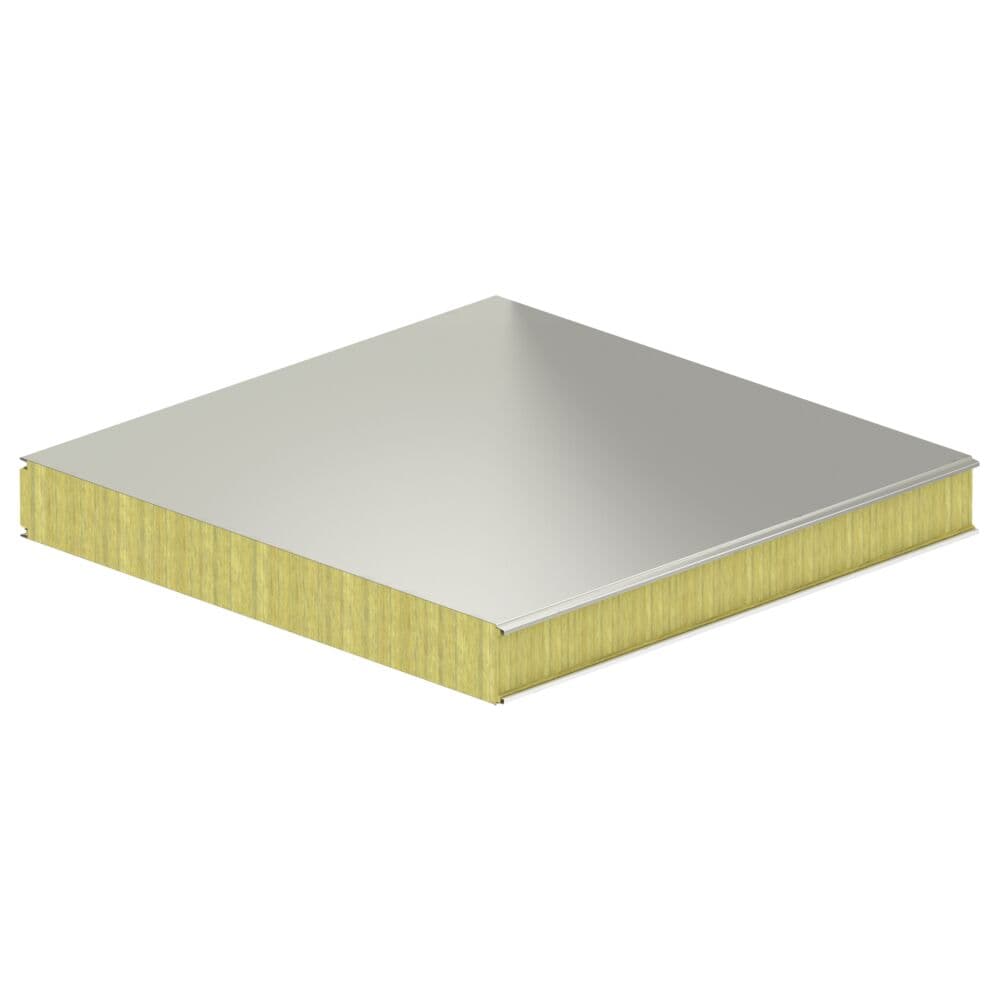

Rockspan Roof is an insulated external roof sandwich panel. It offers reaction to fire performance of Euroclass A2-s1, d0 when tested and classified to BS EN 13501-1:2018.
The Rockspan Roof panel must be overlaid with a mechanically fixed weatherproof layer such as Euroclad Vieo or a SIKA Sarnafil membrane, details of which can be supplied by the relevant company.
Please contact our Technical Team for specific performances and further information.
Coatings
Rockspan Roof is an external roof panel available with Colorcoat Prisma® in a variety of colours as the standard external coating option. Tata Steel Colorcoat Prisma®, Tata Steel Colorcoat PE25®, Tata Steel Advantica® L Control (FSL), and ArcelorMittal Estetic® Standard are all available as internal coating options, with the choice dependent upon the end use and environment of the building. Please contact our Technical Team for further information.
Please note: Tata Steel's Colorcoat Prisma® Elements coatings are not available
