Technical Information

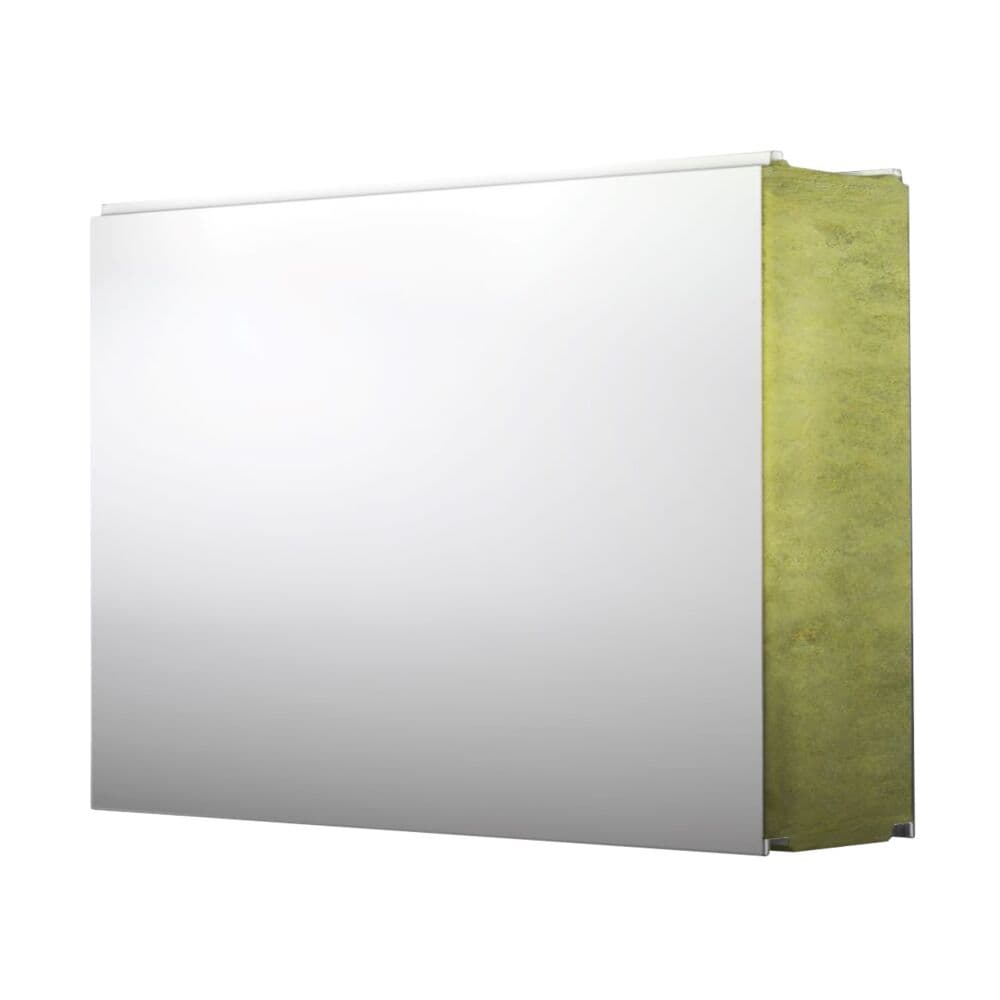

Our Firemaster Extra wall panel offers product-specific performance with fire, thermal, and acoustic properties, available in a variety of thicknesses, coatings, and configurations to suit demanding environments.
Certification and Test Reports
Euroclad Group systems are tested and certified to achieve compliance with regulatory requirements. The classification report for the Eurobond panel A2-s1,d0 Euroclass rating to EN13501-1:2018 can be found here. For any other fire performance or test data, please contact our Technical Team. |
Product Tolerances
Product Tolerances to BS EN 14509:2013
| Firemaster Extra | |
|---|---|
| Panel Length (≤ 3 metres) | ± 5mm |
| Panel Length (> 3 metres) | ± 10mm |
| Panel Width | ± 2mm |
| Panel Thickness | ± 2mm |
| Facing Squareness | ± 2mm |
| Corners (Leg Length) | ± 2.5mm |
| Corners (Angle) | ± 1.0° |
| Flatness | ± 1.5mm from theoretical flat plane over a distance of 700mm |
| Joint Gap | ± 2mm |
Thermal Performance
U value @ 10°C (BS EN 14509:2013) / Thermal Performance - W/m²K
| Core Thickness (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Firemaster Extra | 0.51 | 0.40 | 0.32 | 0.27 | 0.24 | 0.21 | 0.18 | 0.14 |
Weights
Panel Weight per Square Metre (kg)
| Core Thickness (mm) | 75 | 100 | 125 | 150 | 175 | 200 | 240 | 300 |
|---|---|---|---|---|---|---|---|---|
| Weight (0.5mm/0.5mm)* kg/m² | 16.37 | 19.24 | 22.12 | 24.99 | 27.87 | 30.74 | 35.34 | 42.24 |
| Weight (0.5mm/0.7mm)* kg/m² | 17.54 | 20.42 | 23.29 | 26.17 | 29.04 | 31.92 | 36.52 | 43.42 |
| Weight (0.7mm/0.5mm)* kg/m² | 17.54 | 20.42 | 23.29 | 26.17 | 29.04 | 31.92 | 36.52 | 43.42 |
| Weight (0.7mm/0.7mm)* kg/m² | 18.72 | 21.59 | 24.47 | 27.34 | 30.22 | 33.09 | 37.69 | 44.59 |
* Internal/External steel face gauge thickness
Acoustic Performance
For information on acoustic performance contact the Technical Team.
Fire Performance
Firemaster Extra wall panels offer a Euroclass A2-s1, d0 Reaction to Fire when tested and classified to BS EN 13501-1:2018.
Firemaster Extra can also offer fire resistance performances from 60 minutes up to 4 hours Insulation and Integrity (to BS EN 1364-1:2015) depending on thicknesses and orientation. Specific performances should be verified by our Technical Team on a project-by-project basis, to the correct standards.
Panel Options
The Firemaster Extra wall panel is an easy to install partition solution, offering reaction to fire performance of Euroclass A2-s1, d0 when tested and classified to BS EN 13501-1:2018.
The fire resistance performance of Firemaster Extra panels to BS EN 13501-2:2023 or equivalent is dependent on panel thickness, orientation and method of assembly. Please contact our Technical Team for specific performances.
Firemaster Extra panels can be supplied with either 0.5mm or 0.7mm steel faces. Wall panels are available with a flat, mini-bead or equibead profile options, applied to both steel faces of the panel at the point of manufacture.
Firemaster Extra panels are suitable for a wide range of applications, including internal fire separation walls for Data Centres, Food Processing Plants and Cleanrooms. Please speak to our Technical Team for further information regarding these specifications.
Coatings
Firemaster Extra is available in a number of coating options. Tata Steel Colorcoat® PE 25, Tata Steel Advantica® L Control (FSL), and ArcelorMittal® Estetic Standard are available, with the choice dependent upon the end use and environment of the building. Please speak to our Technical Team for further information regarding these options.
