Technical Information

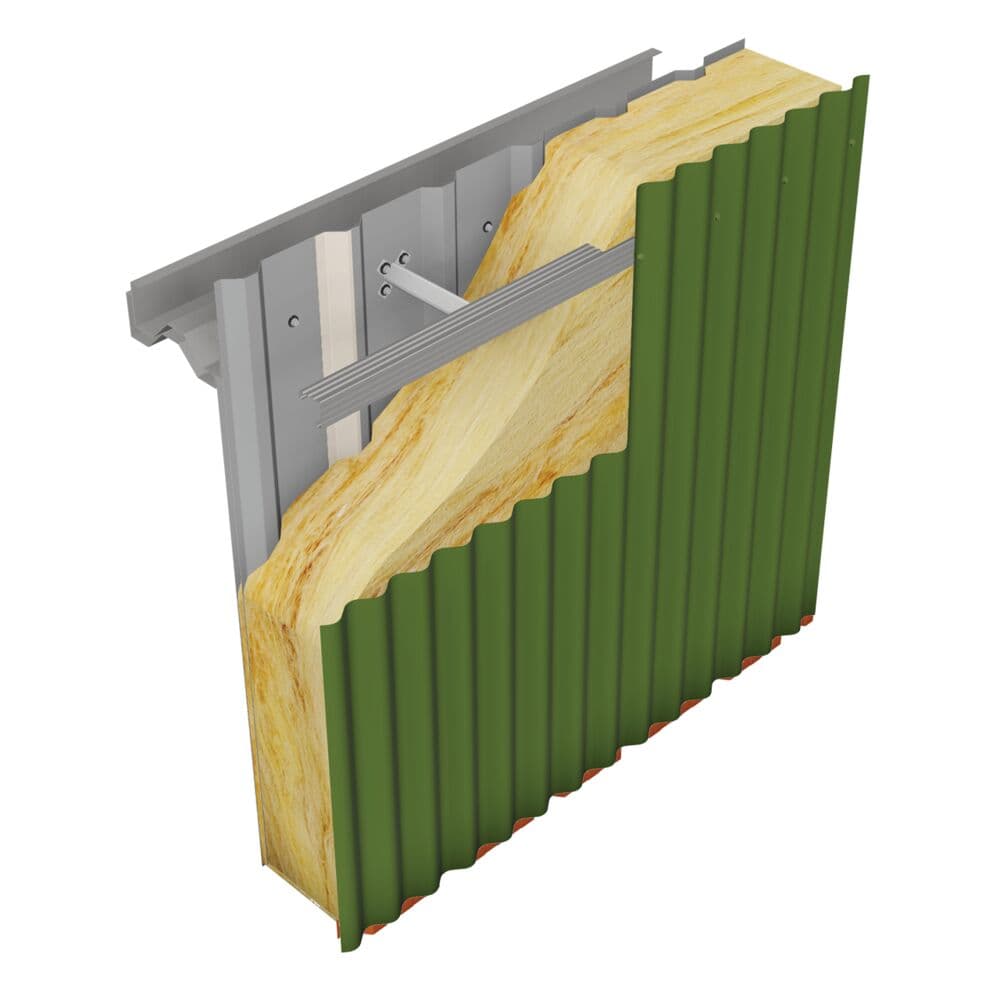

The Elite 53 Range offers multiple system options with tailored thermal, acoustic, and fire performance characteristics, as well as a variety of coatings and finishes. All Elite Wall Systems utilise the same vertical 19-167-1000 liner profile as standard.
System Weights
For calculated maximum possible system weights for each available system variation in the Elite 53 Range, please see the relevant Thermal Result Sheets Technical Guidance document in the Downloads section.
Thermal Performance
The Elite 53 Range of Systems are available in a range of thicknesses to allow tailoring to your thermal requirements. For a detailed breakdown, together with thermal results sheets for each available configuration, please see the relevant Thermal Results Sheet Technical Guidance document for this system, available in the Downloads section.
Acoustic Performance
For information on acoustic performance, contact the Technical Team.
Fire Performance
All systems in our Elite 53 Range are specified with A1-rated insulation to BS EN 13501-1: 2018 or equivalent.
Contact the Technical Team for information on the fire resistance performance of our Elite Wall Systems.
System Options
Please contact the Technical Team regarding available system options within the Elite 53 Range.
Coatings
A variety of coating types and finishes are available as the external finish of our Elite 53 Range systems, including solutions rated A1, A2-s1,d0 and C-s2,d0 when tested to BS EN 13501-1:2018.
Contact our Technical Team for further information regarding these options.
