Sinusoidal

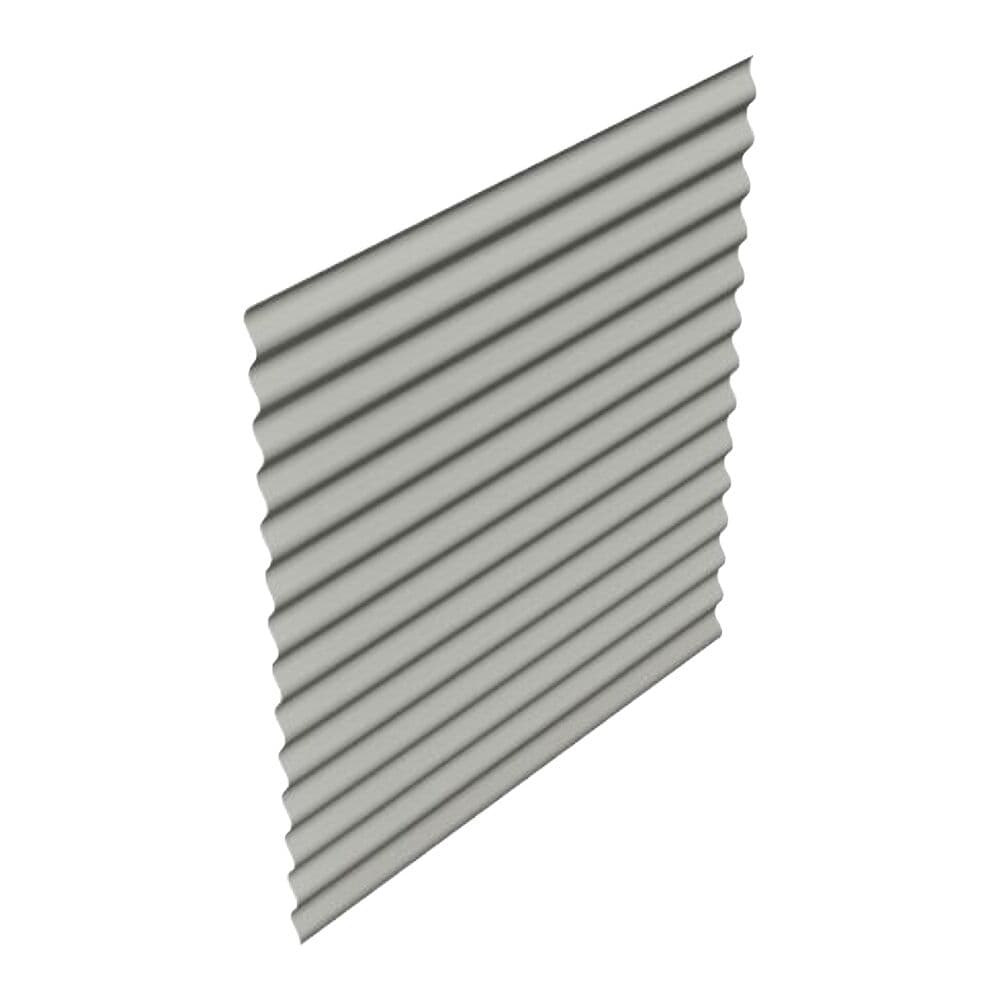

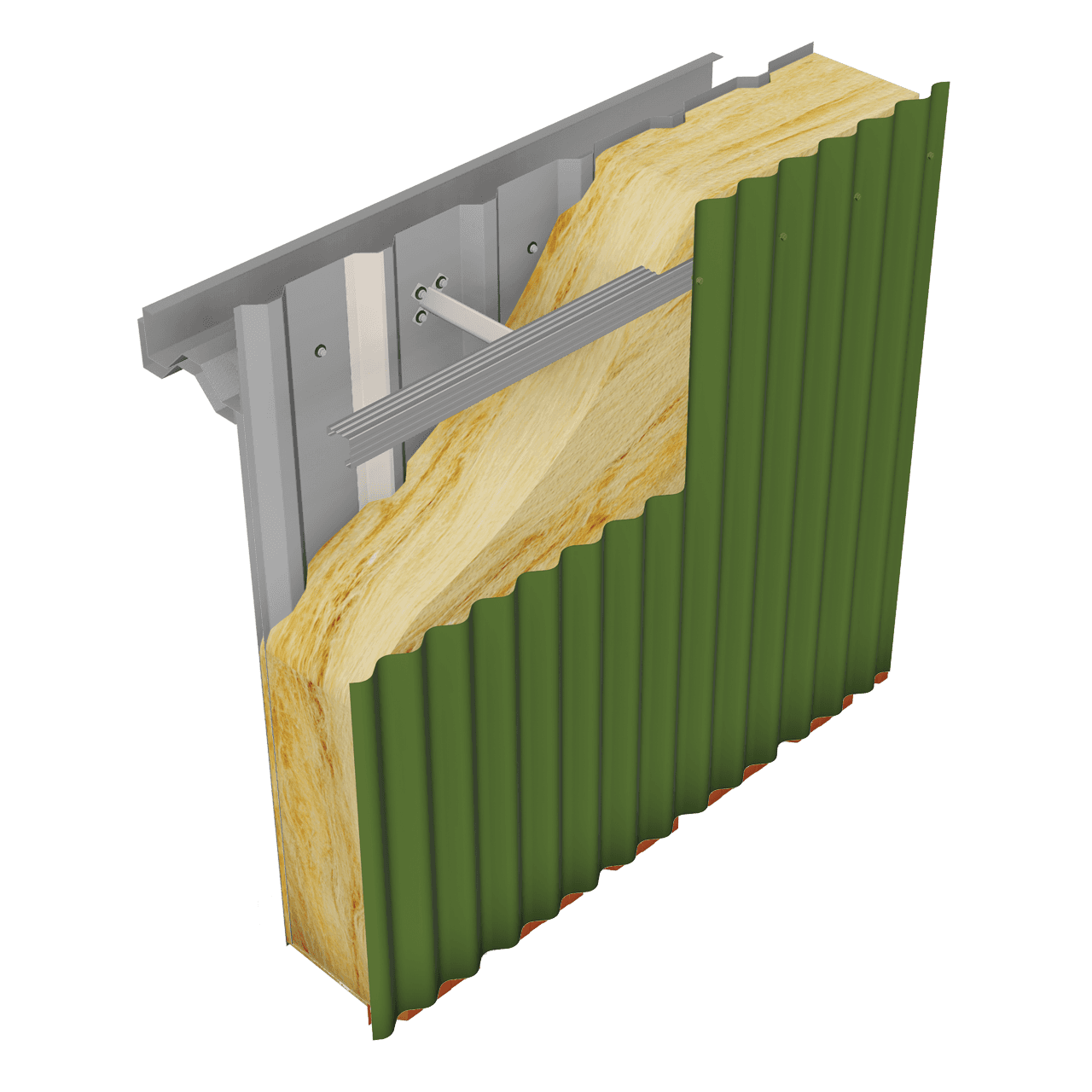

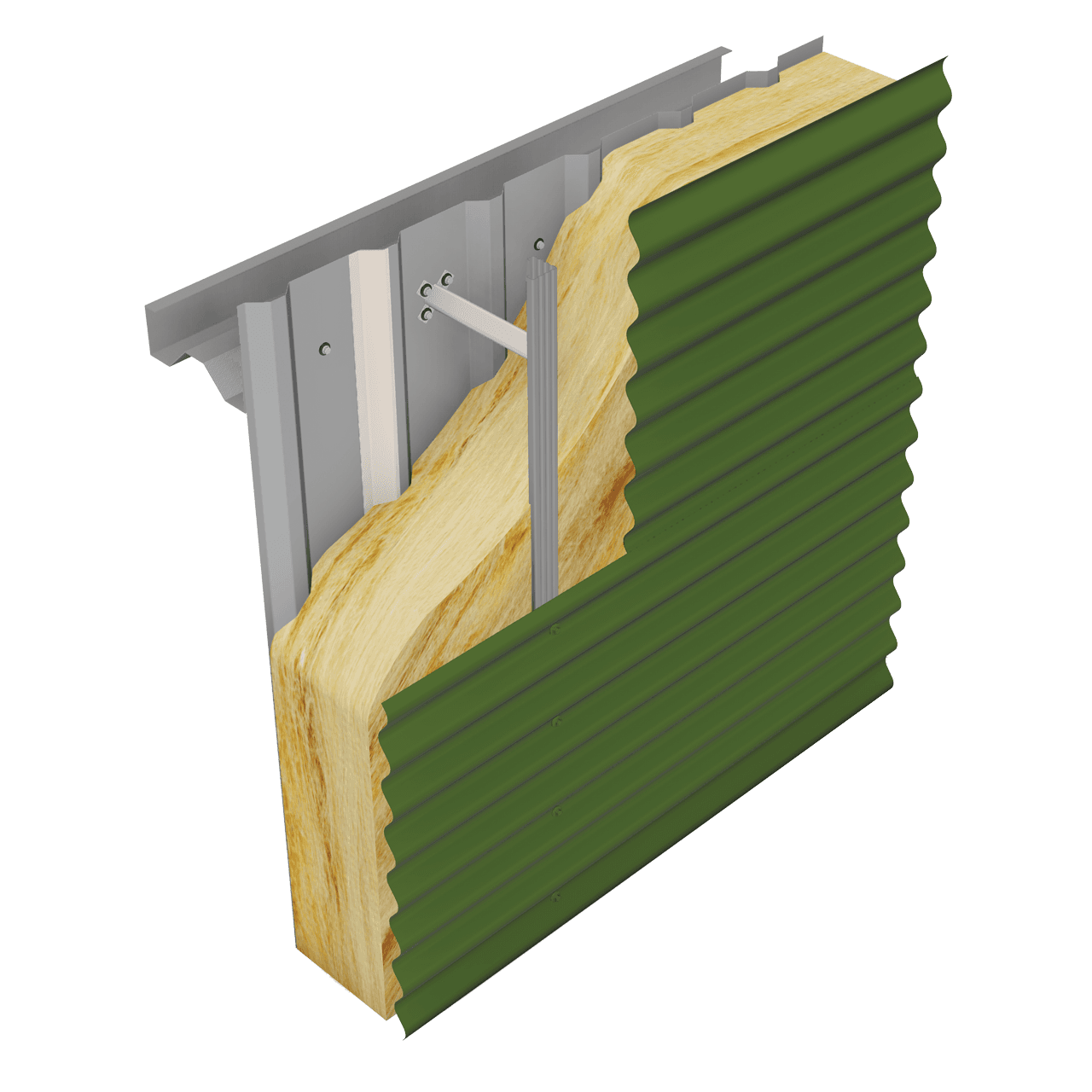

Our Sinusoidal coated sheet profile is suitable for use either as an independent wall covering or as a finish to our Elite 53 and 57 wall system ranges. The Sinusoidal profile is available in coated 0.5mm or 0.7mm steel and can be installed in vertical or horizontal orientation.

Available with coatings to achieve A1, A2-s1,d0 or C-s2,d0 to BS EN 13501-1:2018
Sheets available in 0.5mm or 0.7mm steel with various coating options

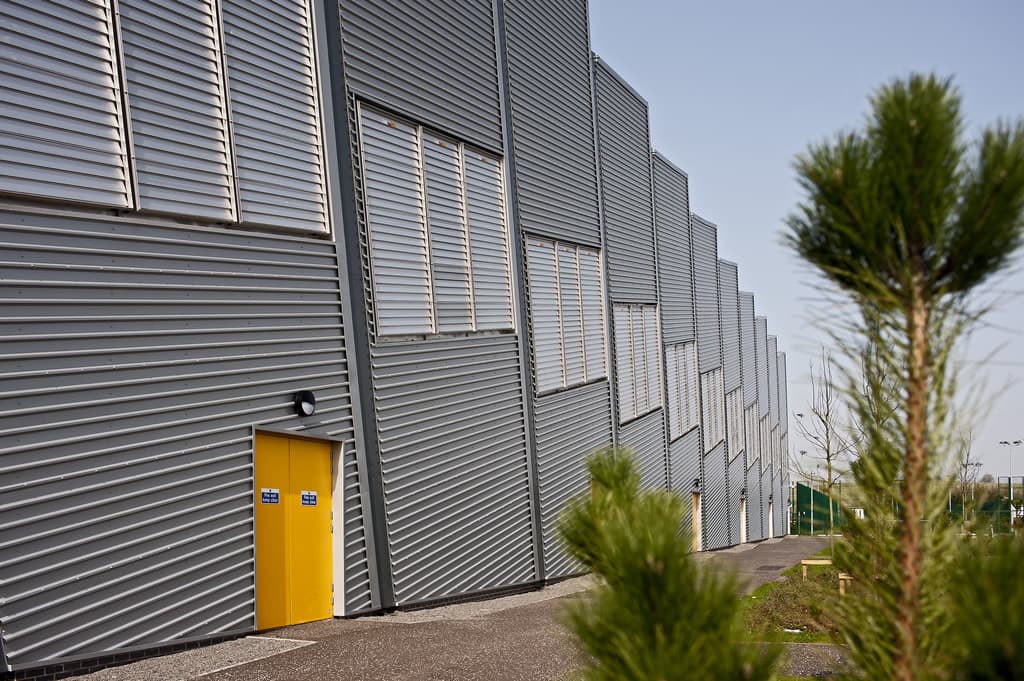

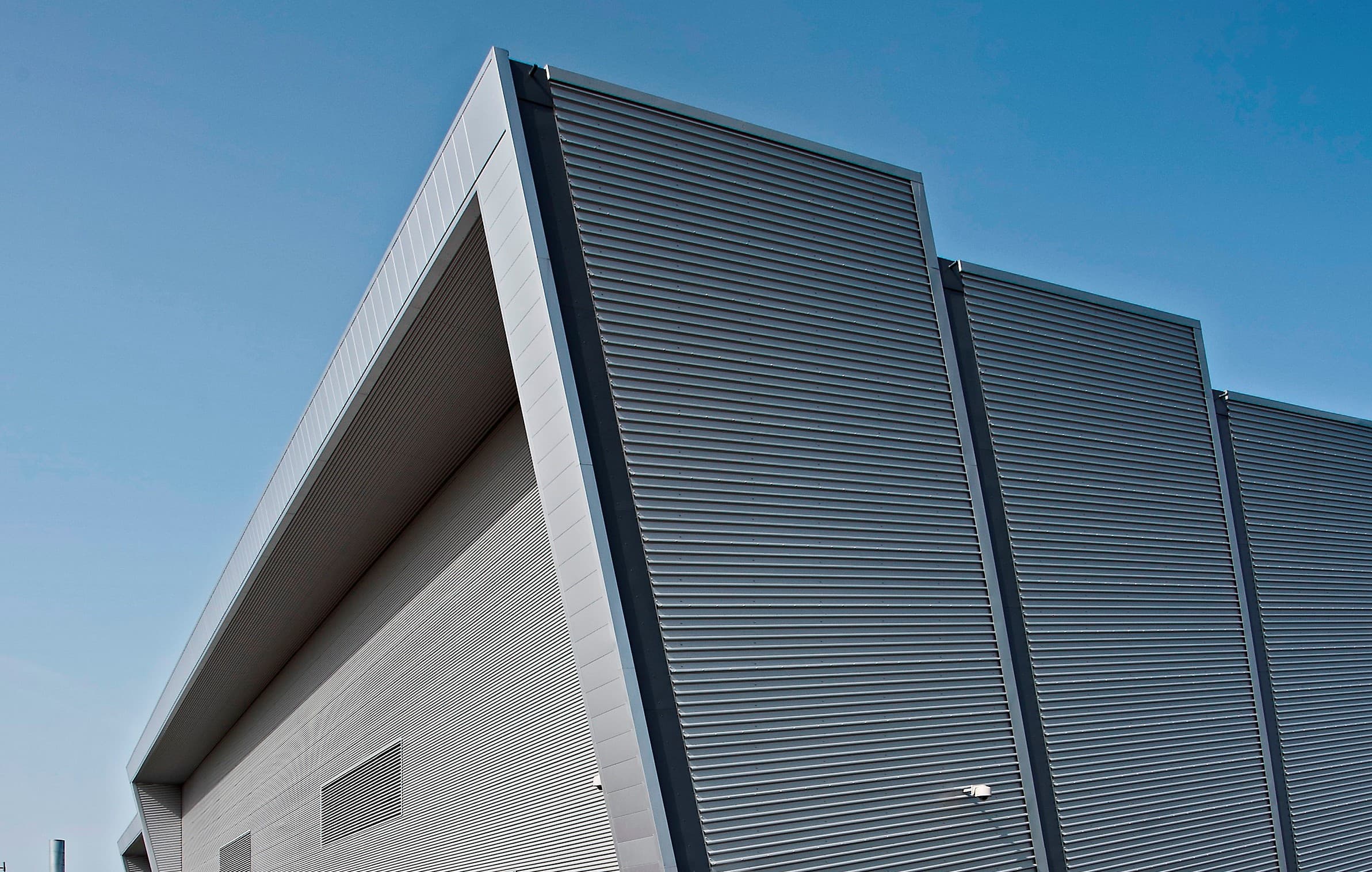

Vertical or horizontal installation possible when specified independently
Sheets available in lengths up to 7 metres
Sheets can be naturally curved to a minimum radius of 30 metres

Order a Profile Sample Expert Help Starts Here

Technical Information

The Sinusoidal profile range offers a variety of technical characteristics, including detailed product parameters, tested performance, and available coatings.

Product Parameters

EC 19-76-990 13.5_3 Sinusoidal (0.5mm & 0.7mm)

Product Parameters
Parameter	Value
Cover Width Nominal (mm)	991
Profile Depth / Height (mm)	20
Profile Pitch (mm)	76
Critical Leg (mm)	16
Runout Leg Minimum (mm)	4
On-site Rolling Availability	N/A
Natural Self Curve Min Radii Concave (m)	30
Natural Self Curve Min Radii Convex (m)	30
Smooth Curve Availability	Yes
Smooth Curve Minimum Sheet Length (m)	2.0
Smooth Curve Maximum Sheet Length (m)	5.5
Smooth Curve Minimum Internal Radii (m)	1.7
Crimped Curve Availability	N/A
Profile Weight (kg/m²)	0.5mm: 4.92 \| 0.7mm: 6.89

Tested Performance

Our Sinusoidal profile is available with coatings to achieve A1, A2-s1,d0 or C-s2,d0 when tested to BS EN 13501-1:2018. For more information, please contact the Technical Team.

Coatings

A variety of coating types and finishes are available as the external finish of our Sinusoidal profile. Contact our Technical Team for further information regarding these options.
