Trapezoidal 32-1000 Wall Range

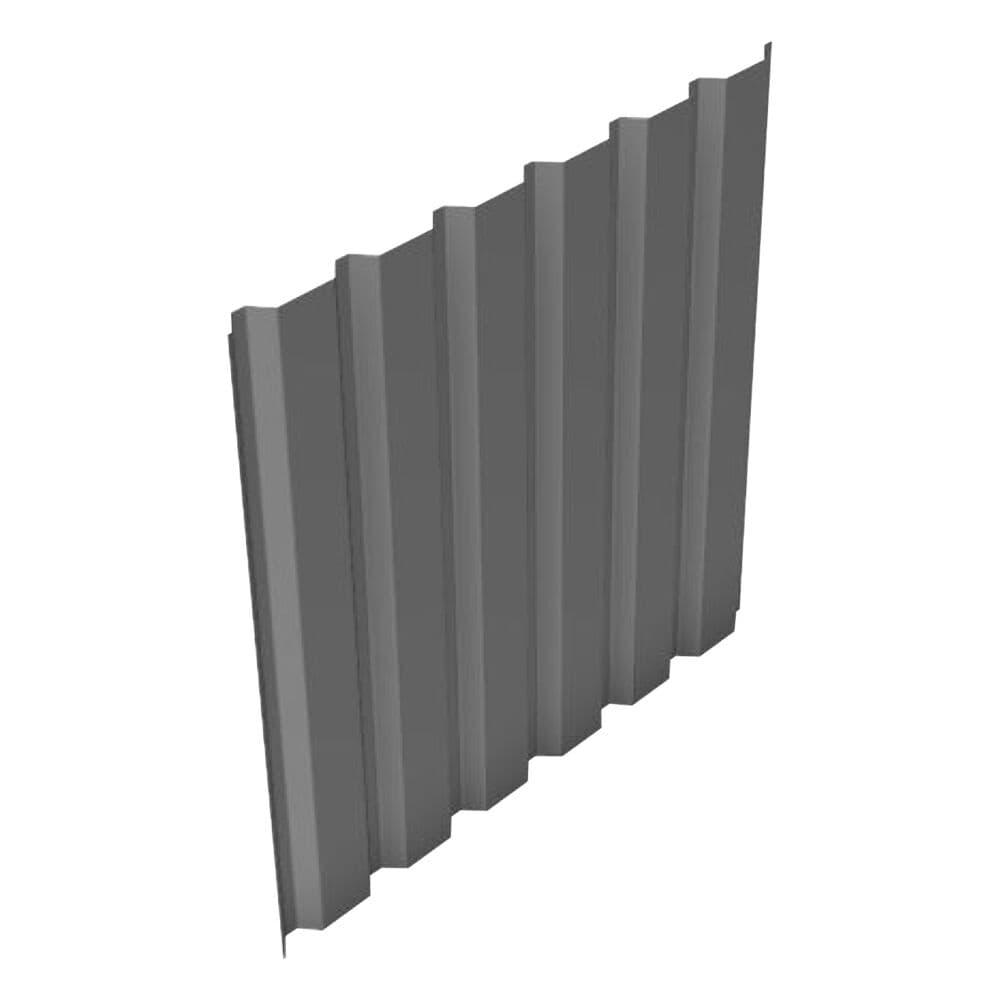

Our 32-1000 Wall Reverse Profile is suitable for use either as an independent wall covering or as a finish to our Elite 51 and 55 wall system ranges. This profile is available in either 0.5mm or 0.7mm gauge coated steel material, and can be installed in vertical or horizontal orientation. Note that the 0.5mm gauge profile is only available in select coating options.

Available with coatings to achieve A1, A2-s1,d0 or C-s2,d0 to BS EN 13501-1:2018
Sheets available in 0.5mm or 0.7mm coated steel
Vertical or horizontal installation possible when specified independently
Profile can self-curve up to a minimum radius of 40 metres in either concave or convex configuration

Order a Profile Sample Expert Help Starts Here

Technical Information

The Trapezoidal 32-1000 Wall Range offers a comprehensive set of technical specifications, including detailed product parameters, tested performance, and available coatings.

Product Parameters

EC 32-167-1000 Wall

Product Parameters
Parameter	Value
Cover Width Nominal (mm)	1000
Profile Depth / Height (mm)	32
Profile Pitch (mm)	167
Critical Leg (mm)	21
Runout Leg Minimum (mm)	4
On-site Rolling Availability	N/A
Natural Self Curve Min Radii Concave (m)	40
Natural Self Curve Min Radii Convex (m)	40
Smooth Curve Availability	N/A
Crimped Curve Availability	N/A
Profile Weight (kg/m²)	0.5mm: 4.87 \| 0.7mm: 6.81

Tested Performance

All profiles in our Trapezoidal 32-1000 Wall Range are available with coatings to achieve A1, A2-s1,d0 or C-s2,d0 when tested to BS EN 13501-1:2018. For more information, please contact the Technical Team.

Coatings

A variety of coating types and finishes are available as the external finish of our Trapezoidal 32-1000 Wall Range profiles. Contact our Technical Team for further information regarding these options.
