Technical Information

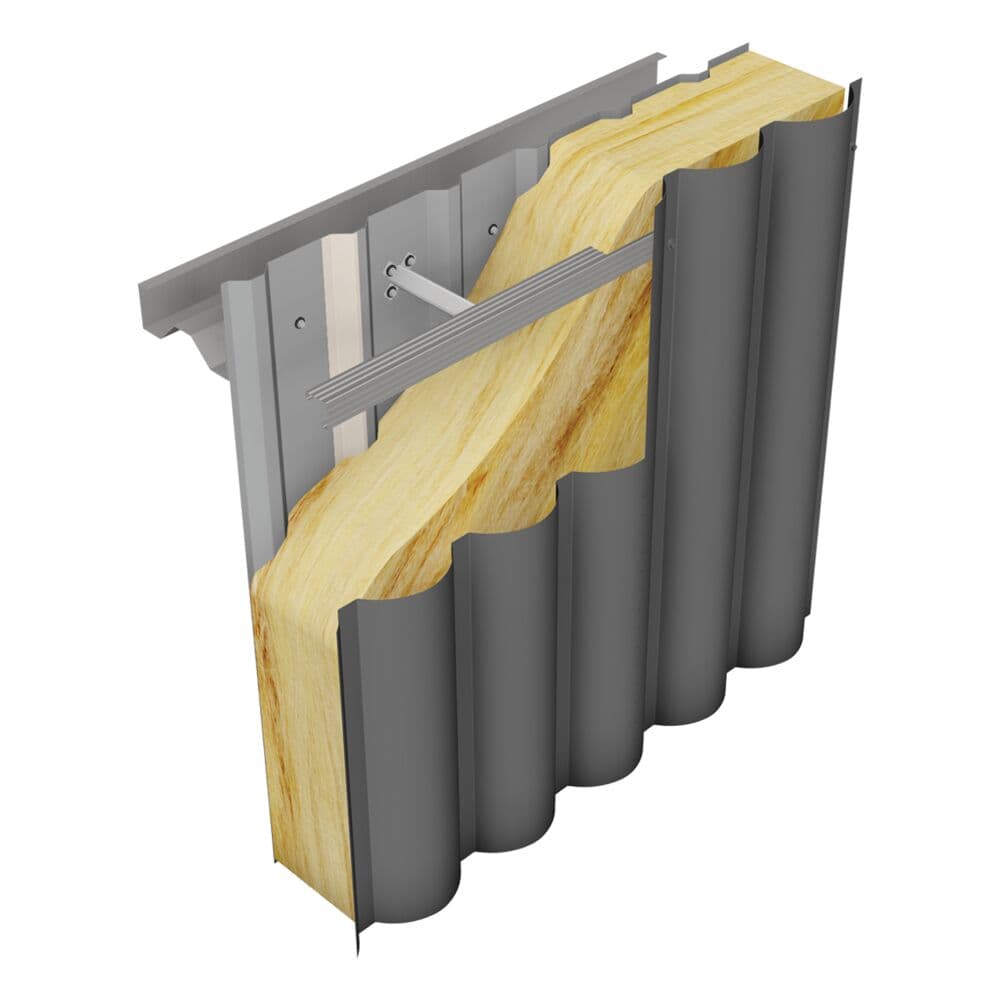

The Elite 50 Range offers a variety of system options with tailored thermal, acoustic, and fire performance characteristics, as well as a selection of external coatings. Detailed technical data and guidance documents are available for each system variation. All Elite Wall Systems utilise the same vertical 19-167-1000 liner profile as standard.
System Weights
For calculated maximum possible system weights for each available system variation in the Elite 50 Range, please see the relevant Thermal Result Sheets Technical Guidance document in the Downloads section.
Thermal Performance
The Elite 50 Range of Systems are available in a range of thicknesses to allow tailoring to your thermal requirements. For a detailed breakdown, together with thermal results sheets for each available configuration, please see the relevant Thermal Results Sheet Technical Guidance document for this system, available in the Downloads section.
Acoustic Performance
For information on acoustic performance, contact the Technical Team.
Fire Performance
All systems in our Elite 50 Range are specified with A1-rated insulation to BS EN 13501-1: 2018 or equivalent.
Contact the Technical Team for information on the fire resistance performance of our Elite Wall Systems.
System Options
Please contact the Technical Team regarding available system options within the Elite 50 Range.
Coatings
A variety of coating types and finishes are available as the external finish of our Elite 50 Range systems, including solutions rated A1 and A2-s1,d0 when tested to BS EN 13501-1:2018.
Contact our Technical Team for further information regarding these options.
Downloads
We bring together products that are shaping the future of the built environment, from energy-efficient envelopes to intelligent building systems.
Elite 60 Range
Insulated built-up wall system with a Half Round external profile

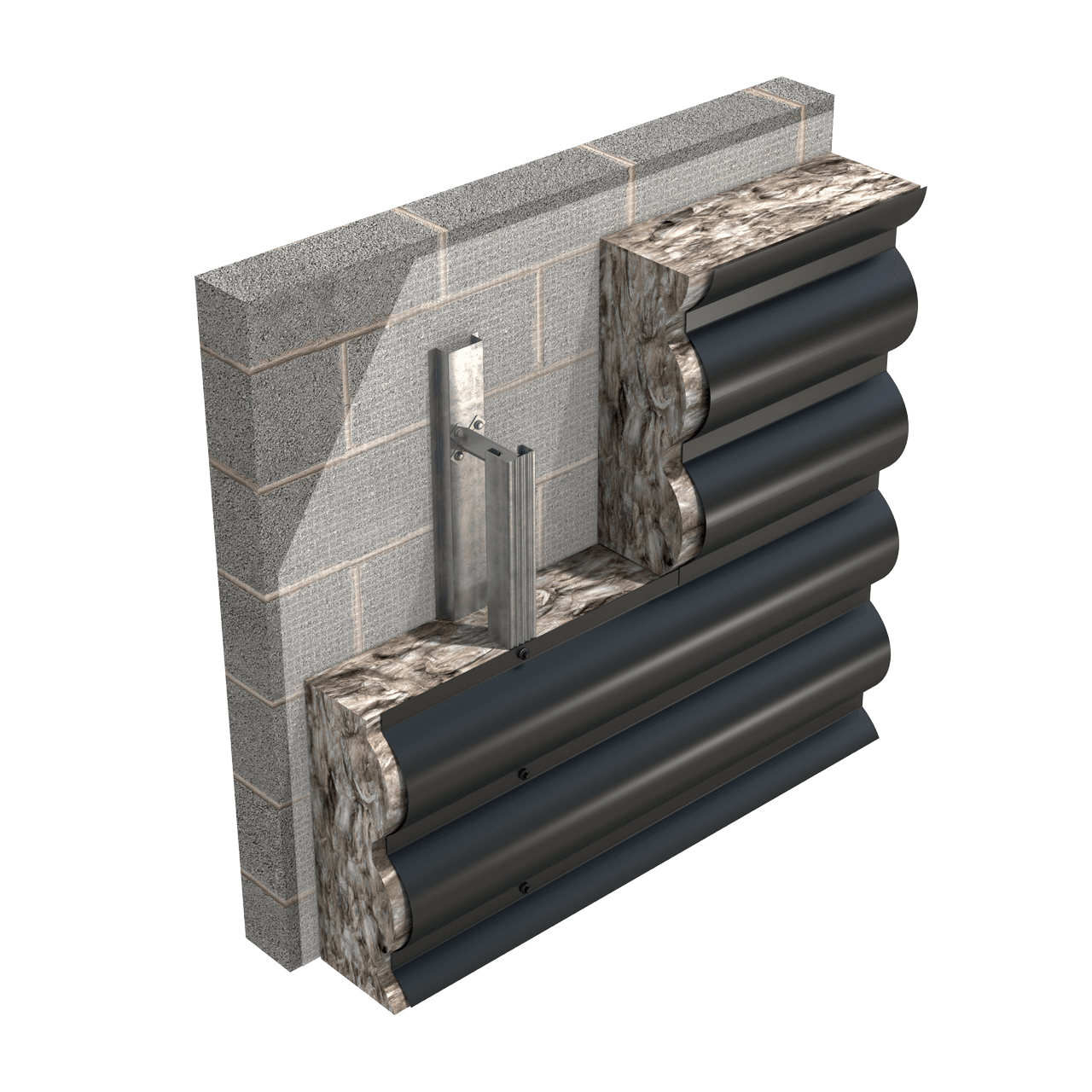

Refresh Wall
