Technical Information

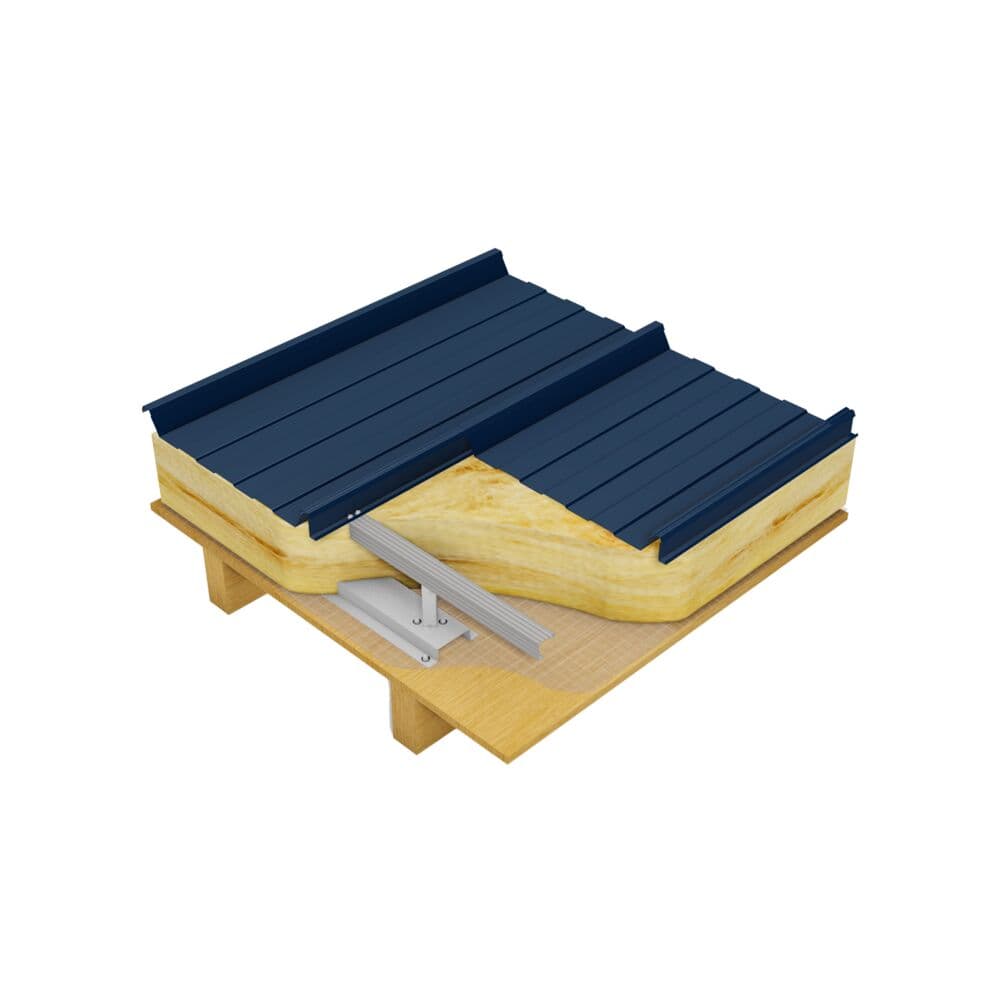

Elite 11 is a high-performance system designed with advanced technical characteristics, including excellent thermal and acoustic performance, a range of coatings, and robust certification options.
Thermal Performance
U Value calculations have been carried out in accordance with BR433:October 2019. See table below:
| Quattro Bracket Height (mm) | U Value (W/m²K) |
|---|---|
| 80 | 0.38 |
| 100 | 0.32 |
| 120 | 0.28 |
| 140 | 0.25 |
| 150 | 0.24 |
| 160 | 0.23 |
| 170 | 0.21 |
| 180 | 0.20 |
| 185 | 0.20 |
| 200 | 0.19 |
| 220 | 0.17 |
| 240 | 0.16 |
| 260 | 0.15 |
| 280 | 0.14 |
| 300 | 0.13 |
| 320 | 0.12 |
| 340 | 0.12 |
| 360 | 0.11 |
| 380 | 0.11 |
| 400 | 0.10 |
*Assumptions Used in Calculation
Quattro Brackets at 1.200m centres, Quattro Bars at 1.500m centres.
0.040λ (Lambda) 90/90 insulation quilt filling the void between deck sheet and plywood deck.
U Values can be calculated for Elite 11 specifications with alternative Quattro Bracket heights not listed above. Contact the Technical Team for more information.
Acoustic Performance
For information on acoustic performance, contact the Technical Team.
Fire Performance
A variety of coating types and finishes are available as the external finish of our Elite 11 system, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.
Contact our Technical Team for further information regarding these options.
Coatings
A variety of coating types and finishes are available as the external finish of our Elite 10 system, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.
Contact our Technical Team for further information regarding these options.
Certification
For information on certification held by Euroclad Group for this system, contact the Technical Team.
Downloads
We bring together products that are shaping the future of the built environment, from energy-efficient envelopes to intelligent building systems.

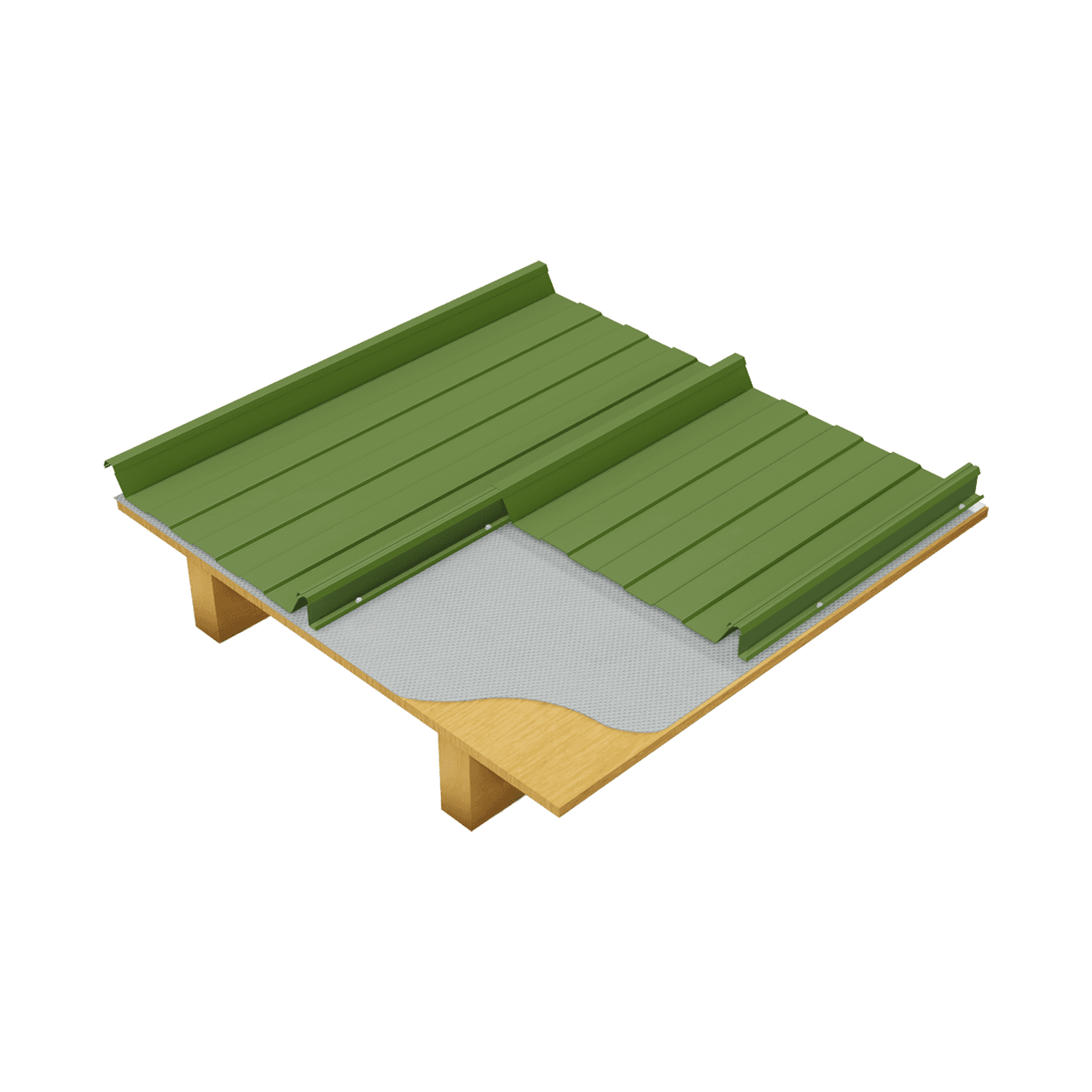

Elite 10
