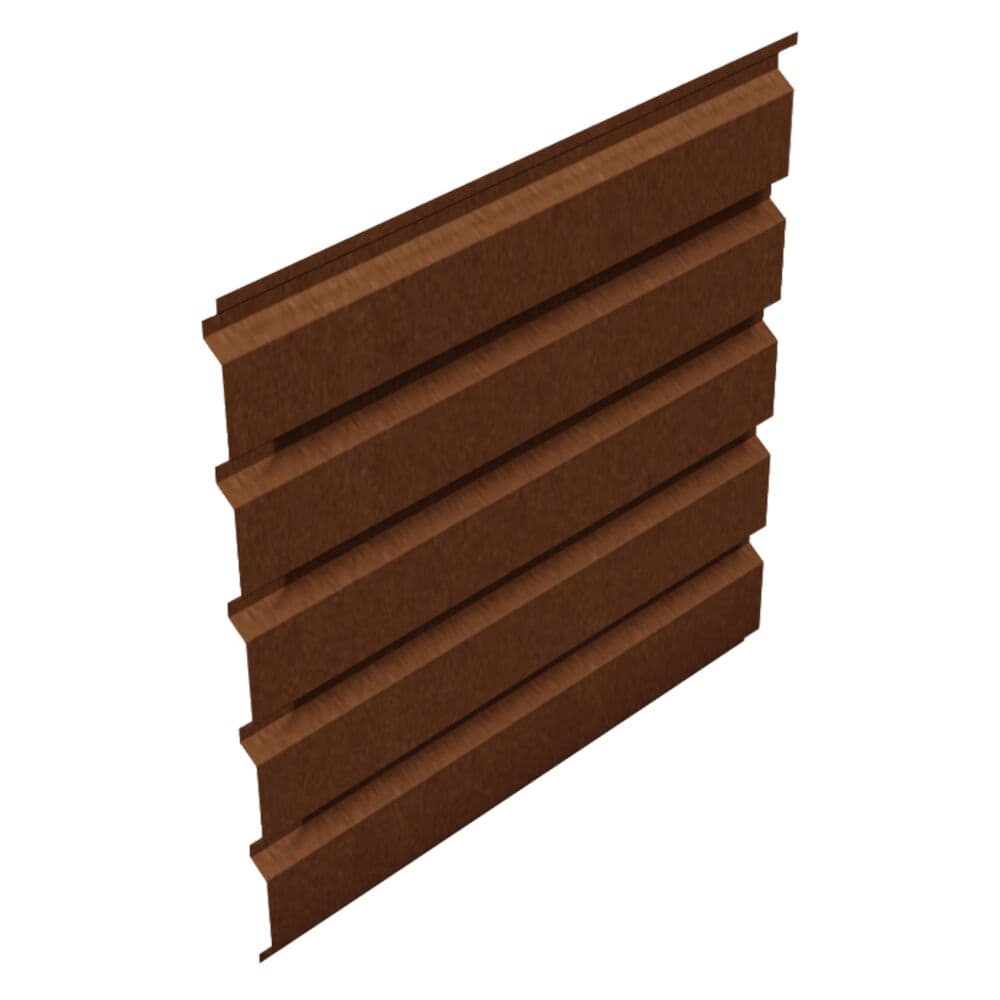

Trapezoidal MW5 Wall Range

Our EC 32-200-1000 Wall MW5 Reverse profile is suitable for use either as an independent wall covering or as a finish to our Elite 52 and 56 wall system ranges. This profile is available in either 0.5mm or 0.7mm gauge coated steel material, and can be installed in vertical or horizontal orientation. Note that the 0.5mm gauge profile is only available in select coating options.

Sheets available in 0.5mm or 0.7mm coated steel
Vertical or horizontal installation possible when specified independently
Profiles can self-curve up to a minimum radius of 40 metres in either concave or convex configuration

Order a Profile Sample Expert Help Starts Here

Technical Information

The Trapezoidal MW5 Wall Range offers a robust and versatile wall cladding solution, engineered for high performance and a variety of technical requirements.

Product Parameters

EC 32-200-1000 Wall MW5 Reverse

Technical specifications for EC 32-200-1000 Wall MW5 Reverse
Parameter	Value
Cover Width Nominal (mm)	1000
Profile Depth / Height (mm)	32
Profile Pitch (mm)	200
Critical Leg (mm)	20
Runout Leg Minimum (mm)	19
On-site Rolling Availability	N/A
Natural Self Curve Min Radii Concave (m)	40
Natural Self Curve Min Radii Convex (m)	40
Smooth Curve Availability	N/A
Crimped Curve Availability	Yes
Crimped Curve Minimum Sheet Length (m)	0.60
Crimped Curve Maximum Sheet Length (m)	6.50
Crimped Curve Minimum Internal Radii (m)	0.30
Crimped Curve Mimimum Sheet Straight Leg (m)	0.30
Profile Weight (kg/m²)	0.5mm: 4.87 \| 0.7mm: 6.81

Tested Performance

All profiles in our Trapezoidal MW5 Wall Range are available with coatings to achieve A1, A2-s1,d0 or C-s2,d0 when tested to BS EN 13501-1:2018 when tested to BS EN 13501-1:2018. For more information, please contact the Technical Team.

Coatings

A variety of coating types and finishes are available as the external finish of our Trapezoidal MW5 Wall Range profile. Contact our Technical Team for further information regarding these options.
