Opus 150

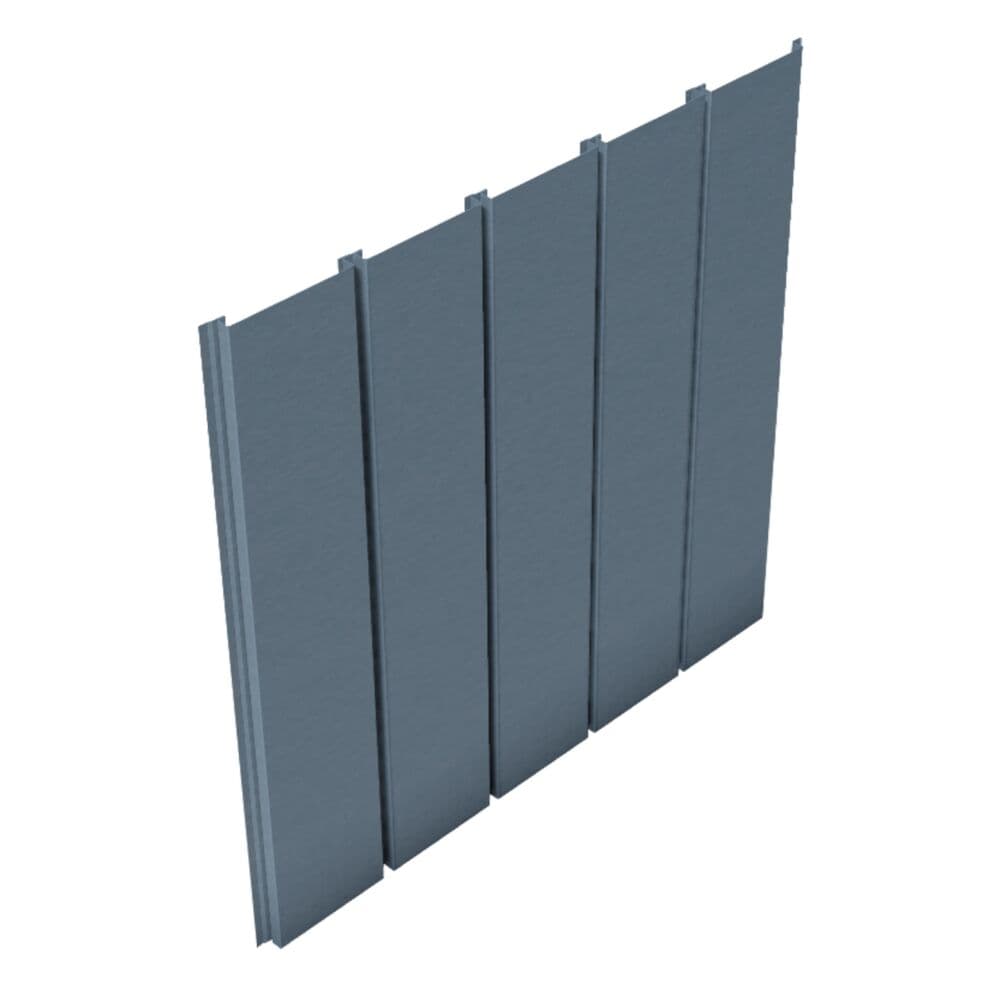

Our Opus 150 interlocking plank profile offers a clean architectural facade, and is suitable for use either as an independent wall covering, or as a finish to our Elite 54 and 58 wall system ranges.

The Opus 150 profile is available in coated 0.7mm Steel or 0.9mm Aluminium material, and can be installed in vertical or horizontal orientation.

Planks available in 0.7mm coated steel or 0.9mm coated aluminium
Vertical or horizontal installation possible when specified independently
Planks available in lengths up to 6 metres

Order a Profile Sample Expert Help Starts Here

Technical Information

Technical characteristics and specifications for the Opus 150 wall profile, including dimensions, physical properties, tested performance, and available coatings.

Product Parameters

EC Opus 25-150 Wall (3mm Gaps)

EC Opus 25-150 Wall (3mm Gaps)
Parameter	Value
Cover Width Nominal (mm)	150
Profile Depth / Height (mm)	24.6
Profile Pitch (mm)	147
Critical Leg (mm)	15.7
Runout Leg Minimum (mm)	12.7
On-site Rolling Availability	N/A
Natural Self Curve Min Radii Concave (m)	N/A
Natural Self Curve Min Radii Convex (m)	N/A
Smooth Curve Availability	N/A
Crimped Curve Availability	N/A
Profile Weight (kg/m²)	0.7mm Steel: 9.23 \| 0.9mm Aluminium: 4.17

Tested Performance

Opus 150 is available with coatings to achieve A1, A2-s1,d0 or C-s2,d0 when tested to BS EN 13501-1:2018. For more information, please contact the Technical Team.

Coatings

A variety of coating types and finishes are available as the external finish of our Opus 150 Wall profile. Contact our Technical Team for further information regarding these options.
