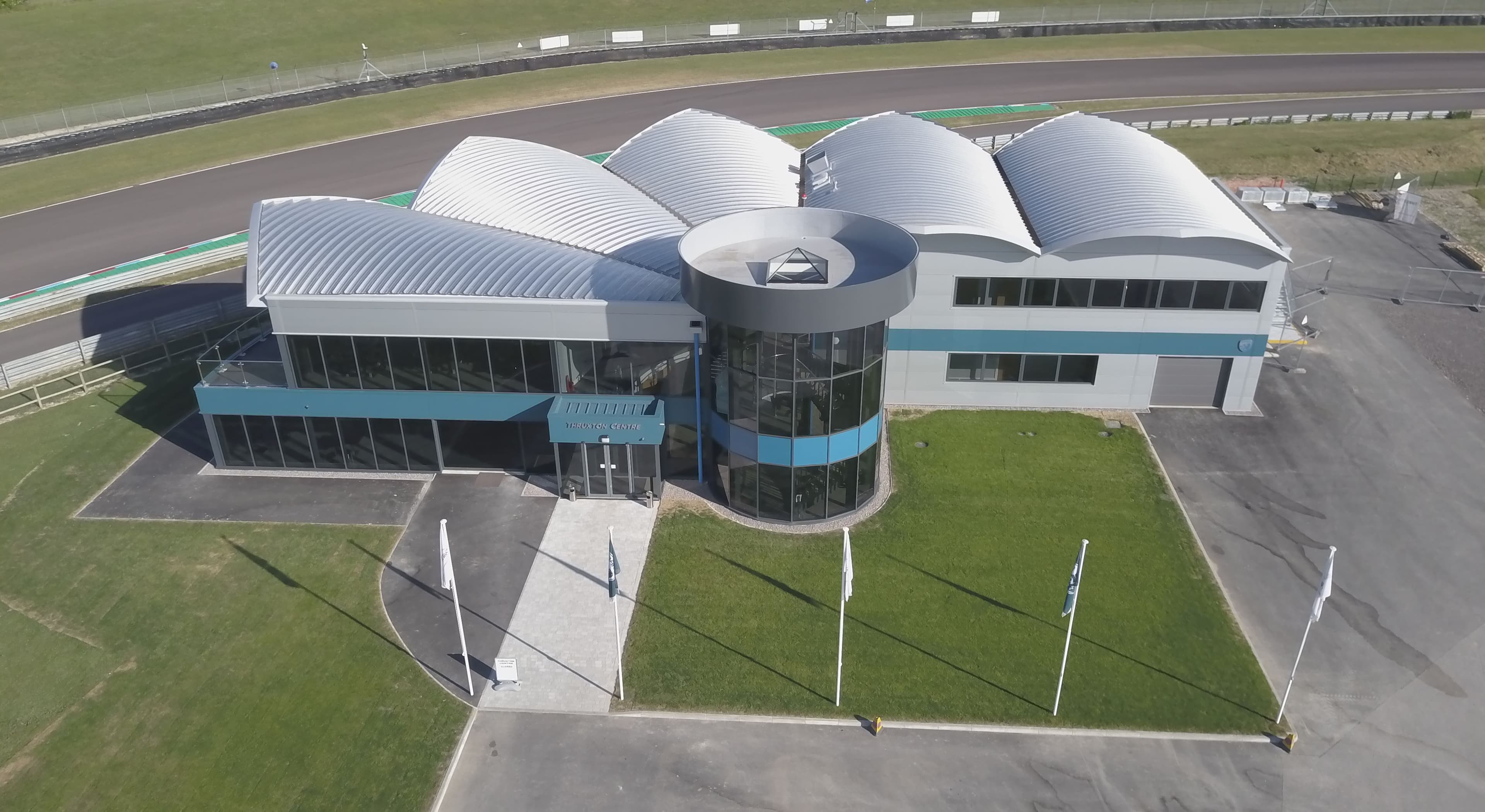

Elite 9 Roof System on racetrack project

Elite 9

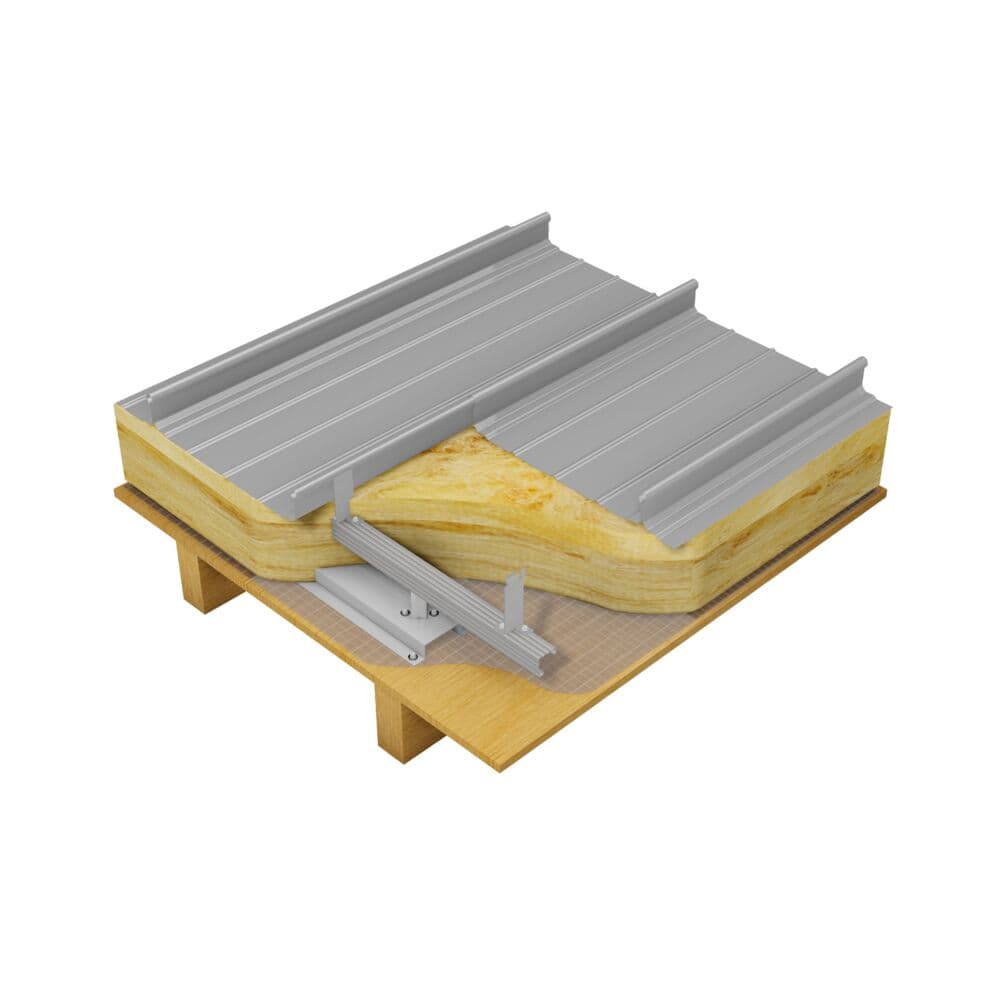

Elite 9 is a standing seam roofing system that incorporates our Euroseam profile, Quattro Spacer System with halters and quilt insulation. Elite 9 is installed over a pre-installed plywood deck, suitable to a minimum finished pitch of 1 degree.

Standing seam roof system designed for a sleek architectural appearance
A range of thicknesses available to provide project-specific thermal performance
External aluminium sheet available in a range of coatings and colours, or in uncoated stucco emboss

Order a profile sample Expert Help Starts Here

Technical Information

Elite 9 is a high-performance system with detailed technical characteristics covering thermal, acoustic, fire, coatings, and certification aspects.

Thermal Performance

U Value calculations have been carried out in accordance with BR433:October 2019. See table below:

U Value calculations for Elite 9
Quattro Bracket Height (mm)	U Value (W/m²K)
80	0.29
100	0.25
120	0.22
140	0.20
150	0.19
160	0.19
170	0.18
180	0.17
185	0.17
200	0.16
220	0.15
240	0.14
260	0.13
280	0.12
300	0.12
320	0.11
340	0.11
360	0.10
380	0.10
400	0.09

*Assumptions used in calculation:

Quattro Brackets at 1.200m centres, Quattro Bars at 1.500m centres.
0.040λ (Lambda) 90/90 insulation quilt filling the void between deck sheet and plywood deck.
U Values can be calculated for Elite 9 specifications with alternative Quattro Bracket heights not listed above. Contact the Technical Team for more information.

Acoustic Performance

For information on acoustic performance, contact the Technical Team.

Fire Performance

A variety of coating types and finishes are available as the external finish of our Elite 9 system, including options to achieve BROOF(T4) to BS EN 13501-5:2016 by either physical testing or commission decision.

Contact our Technical Team for further information regarding these options.

Coatings

Contact our Technical Team for further information regarding these options.

Certification
